Installing Oil Pan

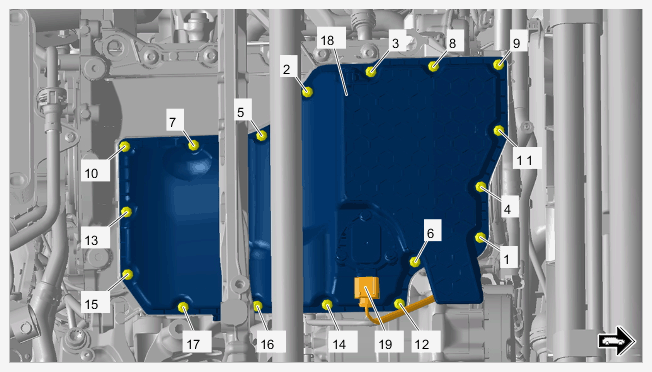

Fig 1: Oil Pan Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil pan

1. 1.1  Insert new oil pan seal.
2. 1.2  Position oil pan -18-  .
3. 1.3  Fit new screws and tighten in the sequence -1 to 17-  .

   Initial tightening 8 Nm (6 ftlb.)

   Final tightening + 90°

4. 1.4  Push on and lock cable plug for oil level sensor -19-  .
