Removing Oil Pan (Upper Part)
WARNING: This page is about a different variant/trim than selected.

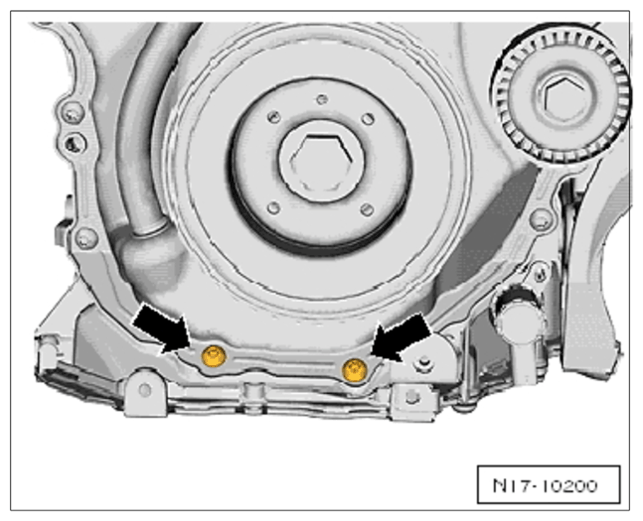

- Unscrew screws -Arrows-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
(Side) screws for upper part of oil pan

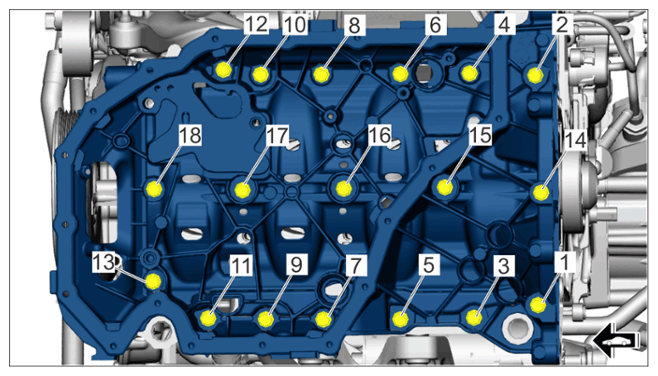

- Unscrew screws -1-
to -18-
and remove upper part of oil pan.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tightening sequence for upper part of oil pan
