Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove transmission.

    > 373419 - REMOVING AND INSTALLING PORSCHE DOPPELKUPPLUNG (PDK)

  2. Remove oil pan (lower part).

    > 175019 - REMOVING AND INSTALLING OIL PAN

  3. Remove rear joint flange.
  4. Remove oil pump.

    > 172019 - REMOVING AND INSTALLING OIL PUMP

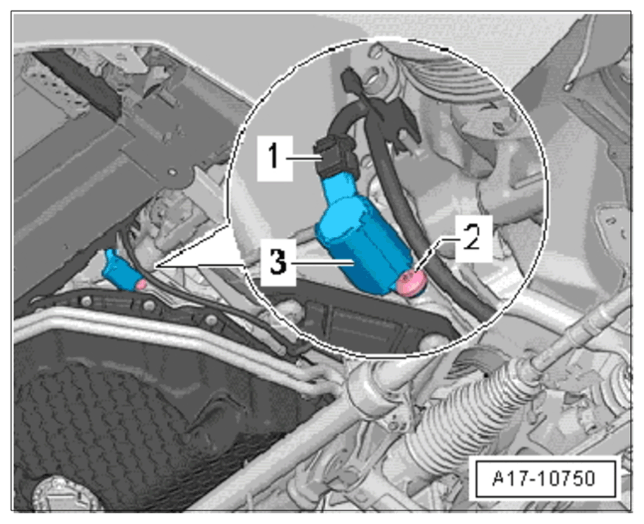

  5. Disconnect electric plug connection -1-  .
    G15145056Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil pressure control valve
