Installing Oil Pan (Upper Part)

Information

• Check best-before date on the silicone sealant.
• Upper part of oil pan must be installed within 5 minutes of applying the silicone sealant.
• Replace screws that are tightened to an additional torque angle.
• Replace sealing rings, seals and self-locking nuts.
• Remove any residual sealant on the cylinder block using a flat scraper.

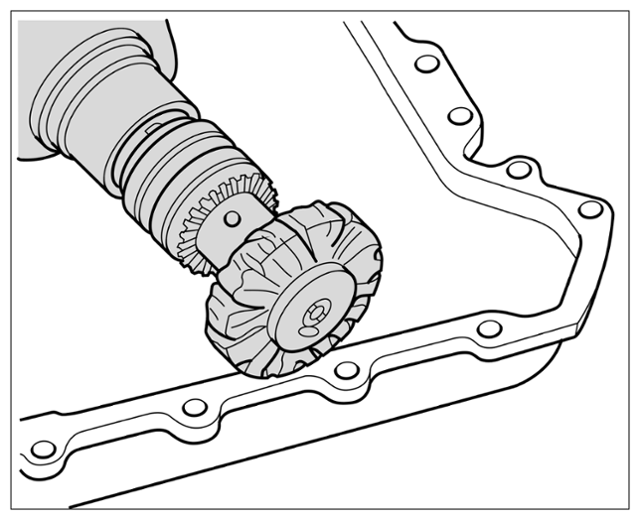

1. Remove residual sealant on upper part of oil pan and on the lower timing chain cover using a rotating plastic brush for example.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cleaning sealing faces with a plastic brush

2. Clean sealing faces to remove any oil and grease.
3. Check oil ducts in upper part of oil pan and in the cylinder crankcase for dirt.

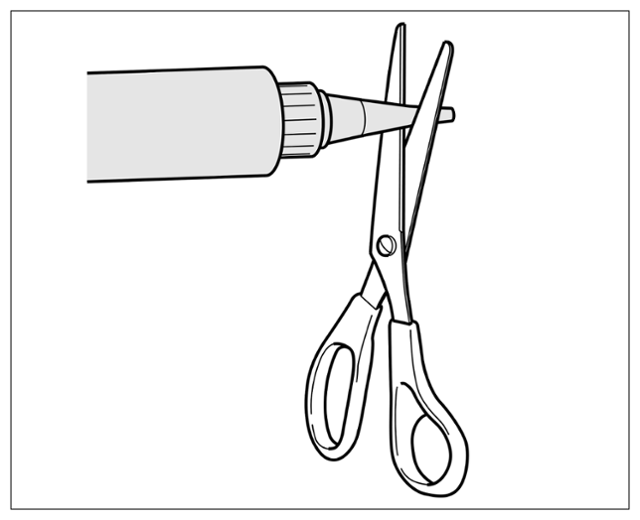

4. Cut off the nozzle on the tube Cutting off nozzle on tube  at the front marking (nozzle diameter is approx. 2 mm).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cutting off nozzle on tube

   Information

   • The bead of sealant must not be thicker than the specified thickness because otherwise excess sealant can get into the oil pan and can block the strainer in the oil pump.
   • The components must be installed within 5 minutes of applying the sealant.

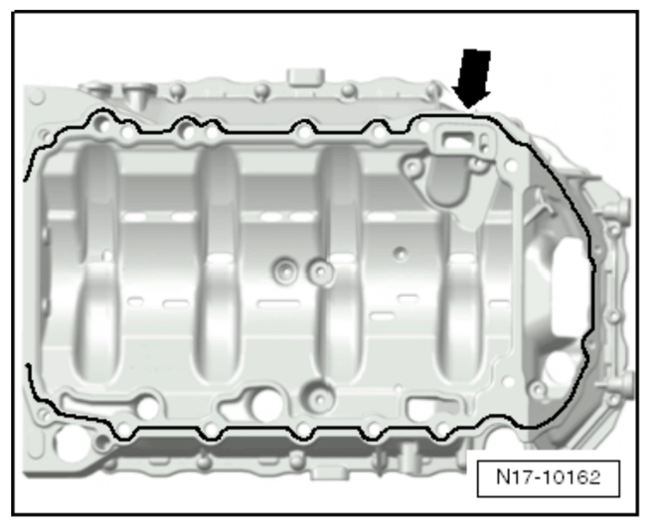

5. Apply silicone sealant to the clean sealing face on the upper part of the oil pan as shown -Arrow-  .
   1. 5.1  Sealant bead thickness: 2... 3 mm.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sealant bead

   Information

   • The bead of sealant must not be thicker than the specified thickness because otherwise excess sealant can get into the oil pan and can block the strainer in the oil pump.
   • The components must be installed within 5 minutes of applying the sealant.

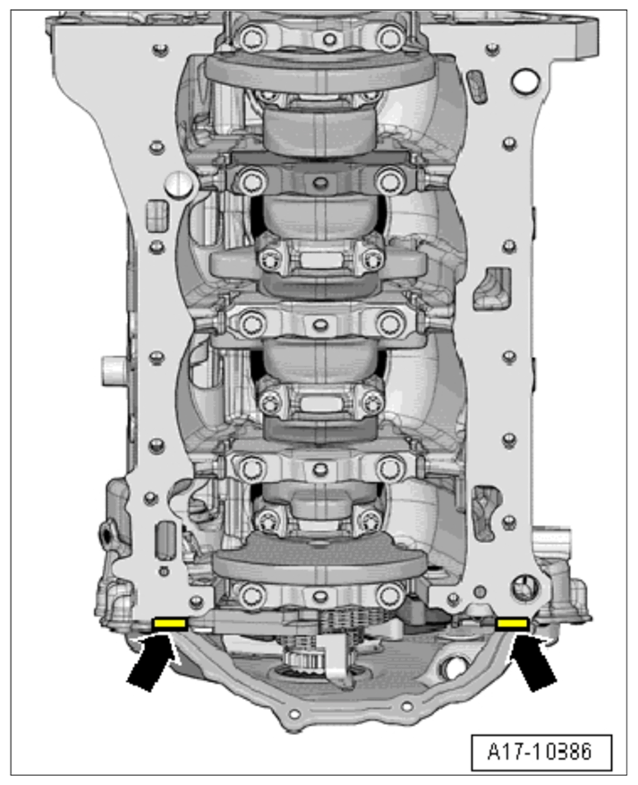

6. Apply silicone sealant as shown in Fig. -Arrows-  between the cylinder block and lower timing chain cover.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Silicone sealant on cylinder block

7. Upper part of oil pan and crankcase must be flush on the transmission side.
8. Fit upper part of oil pan immediately and tighten screws.
   1. 8.1  Screws 1 to 18 Initial tightening 8 Nm (6 ftlb.)
   2. 8.2  Screws 1 and 2 Final tightening + 180°
   3. 8.3  Screws 3 to 13 Final tightening + 45°
   4. 8.4  Screws 14 to 18 Final tightening + 90°

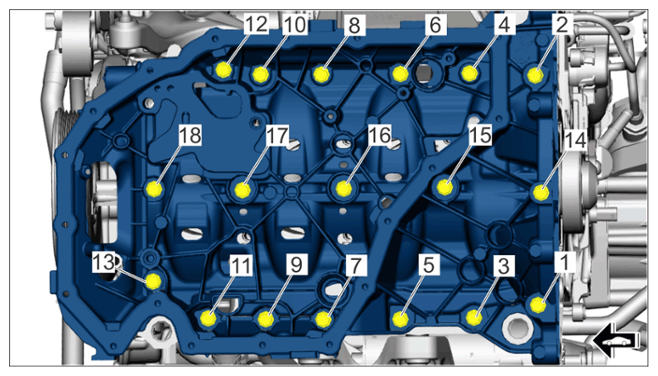

   Fig 1: Oil Pan Screws Tightening Sequence (Upper Part)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tightening sequence for upper part of oil pan

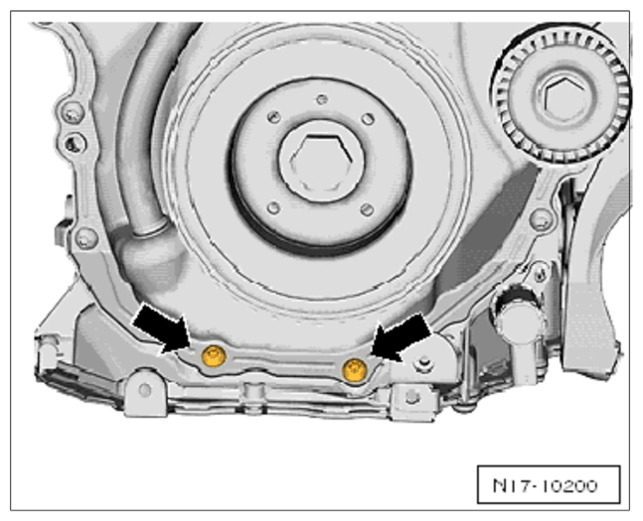

9. Fit and tighten screws -Arrows-  .
   1. 9.1  Screws -Arrows-  Initial tightening 8 Nm
   2. 9.2  Screws -Arrows-  Final tightening + 90°

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   (Side) screws for upper part of oil pan
