Removing Oil Cooler

WARNING: This page is about a different variant/trim than selected.
  1. Remove oil cooler -1-  .

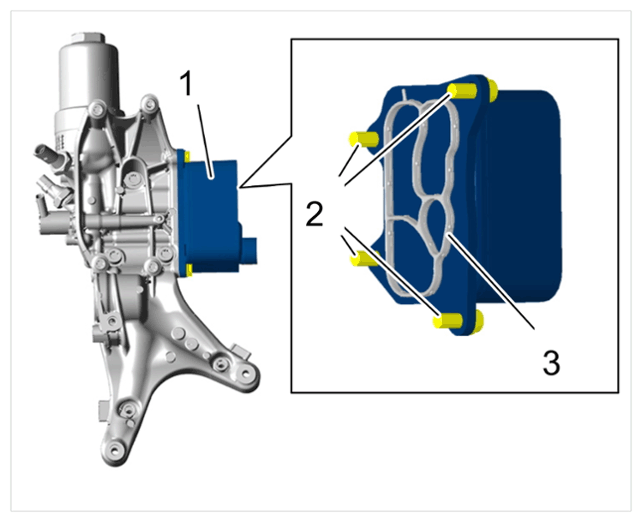

    G15145055Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil cooler

    1. 1.1  Unscrew screws -2-  .
    2. 1.2  Remove oil cooler -1-  together with seal -3-  .
