Installing Pressure-Regulating Valve
WARNING: This page is about a different variant/trim than selected.

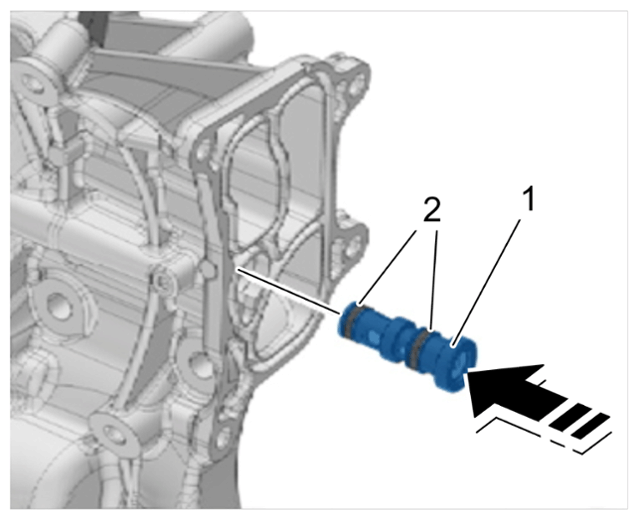

- Install pressure-regulating valve -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Pressure-regulating valve
- 1.1
Replace sealing rings -2-
and coat with ATF.
- 1.2
Insert pressure-regulating valve -1-
into the oil cooler bracket in -direction of arrow-
.
