Removing Oil Pump

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

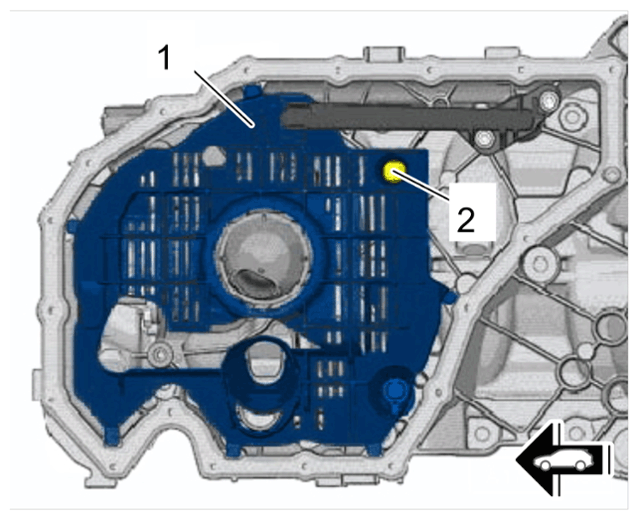

Oil windage tray

1. 1.1  Unscrew screw -2-  .
2. 1.2  Remove oil windage tray -1-  .
   1. 1.2.1  Replace oil windage tray and O-ring.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

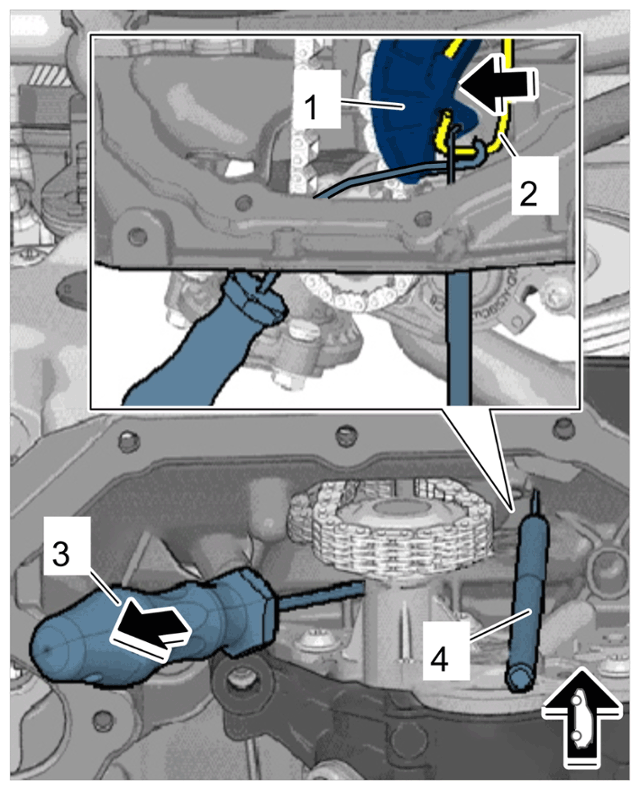

Chain tensioner for oil pump

1. 2.1  Tighten spring -2-  on chain tensioner for oil pump using T10118 - assembly tool-3-.
2. 2.2  Lock chain tensioner for oil pump -1-  using T40265 - locking tool-4-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

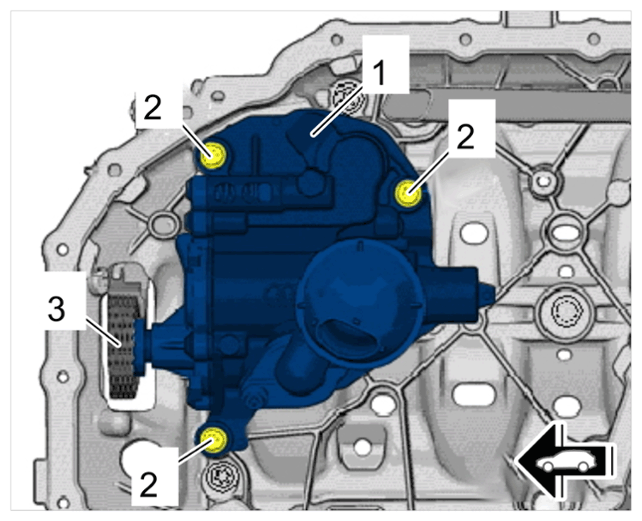

Oil pump

1. 3.1  Unscrew screws on oil pump -2-  .
   1. 3.1.1  Replace screws for oil pump.
2. 3.2  Guide oil pump -1-  out of the drive chain -3-  and remove it.
