Installing Oil Pump

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

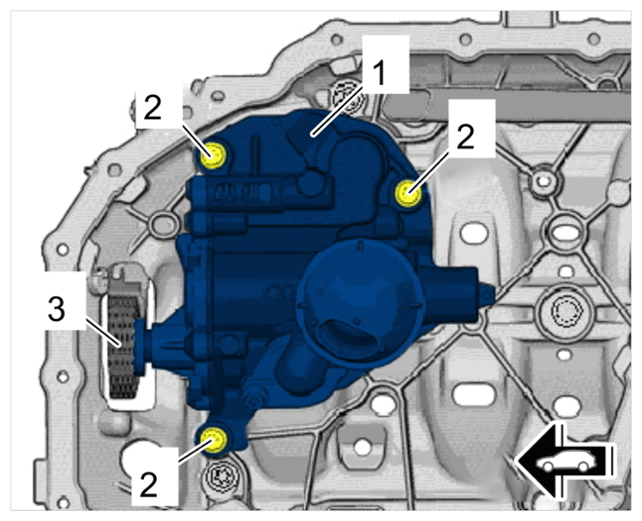

Oil pump

1. 1.1  Check that dowel sleeves for centring the oil pump in the oil guide housing are inserted.
2. 1.2  Check oil ducts in the oil guide housing for dirt and clean them if necessary.
3. 1.3  Check strainer in the oil suction pipe for dirt and clean it if necessary.
4. 1.4  Guide oil pump -1-  into the drive chain and position it.
5. 1.5  Fit and tighten new  oil pump screws -2-  .

   > Initial - tightening 8 Nm (6 ftlb.)

   > Final tightening + 90°

Information

The chain tensioner spring must return to the installation position, otherwise, there is a risk of irreparable engine damage.

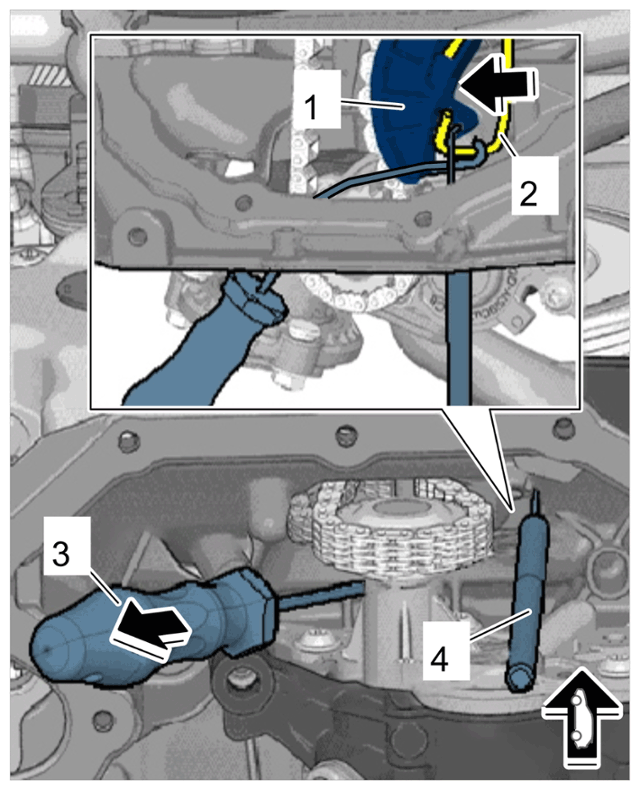

Pull chain tensioner spring -2-  with T10118 - assembly tool-3-  in -direction of arrow-  and remove T40265 - locking tool-4-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Chain tensioner for oil pump

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

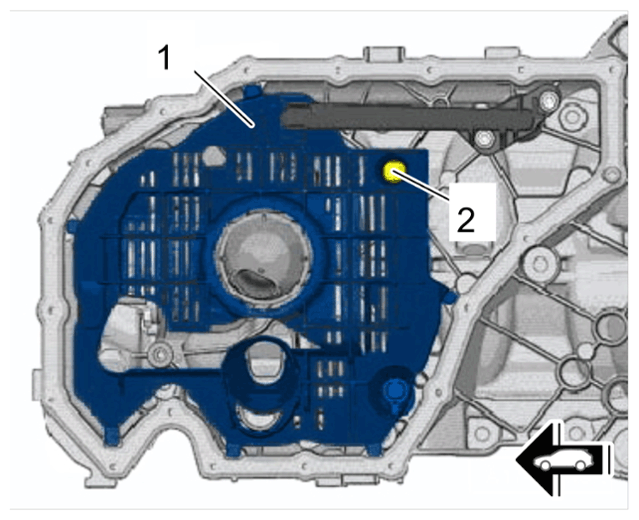

Oil windage tray

1. 3.1  Fit new  O-ring onto new  oil windage tray.
2. 3.2  Coat O-ring with engine oil.
3. 3.3  Position oil windage tray -1-  .
4. 3.4  Fit and tighten screw -2-  .

   > Initial - tightening 4 Nm (3 ftlb.)

   > Final tightening + 45°
