Removing Oil Level Sensor

WARNING: This page is about a different variant/trim than selected.
WARNING: Hot fluid
  • Danger of scalding
    1. → Let the fluid cool down.
    2. → Wear personal protective gear.
CAUTION: Hot components
  • Risk of burns
    1. → Let hot components cool down.
    2. → Wear personal protective gear.

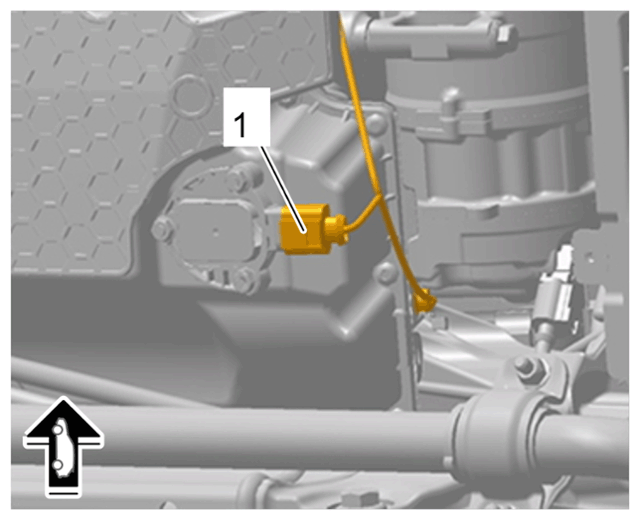

  1. Release and disconnect cable plug -1-  .
    G15145036Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable plug for oil level sensor

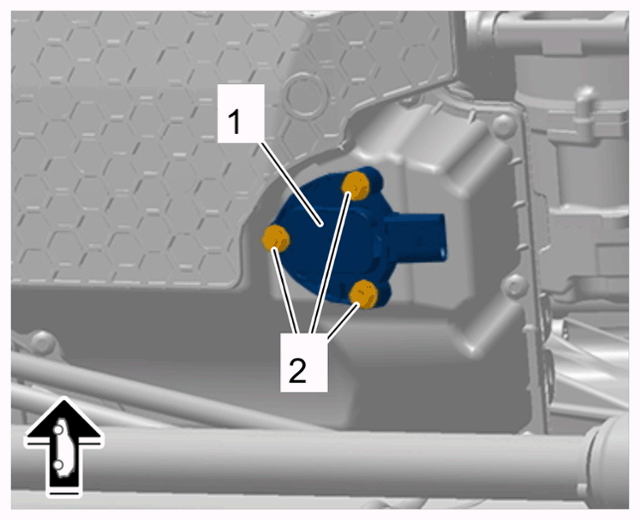

  2. Remove oil level sensor -1-  .
    G15145037Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil level sensor

    1. 2.1  Unscrew nuts -2-  .
    2. 2.2  Remove oil level sensor -1-  .
    3. 2.3  Catch escaping oil using suitable aids.
