Installing Oil Level Sensor
WARNING: This page is about a different variant/trim than selected.
- Installation is performed in reverse order. Pay particular attention to the following:
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

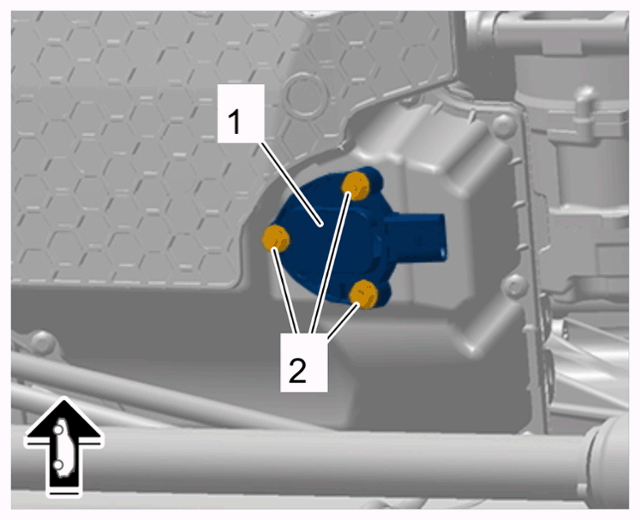

Oil level sensor
- 1.1
Replace sealing ring on oil level sensor.
- 1.2
Tighten nuts for oil level sensor -2-
.
Tightening torque 9 Nm (6.5 ftlb.)
