Removing Oil-Pressure Sender For Reduced Oil Pressure

WARNING: This page is about a different variant/trim than selected.
WARNING: Hot fluid
  • Danger of scalding
    1. → Let the fluid cool down.
    2. → Wear personal protective gear.
  1. Remove oil-pressure sender for educed oil pressure -1-  .

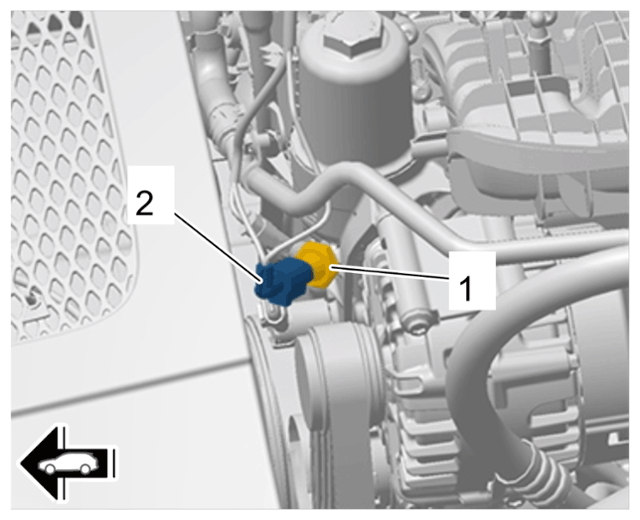

    G15145033Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil-pressure sender for reduced oil pressure

    1. 1.1  Release and disconnect electric plug connection -2-  .
    2. 1.2  Unscrew oil-pressure sender for reduced oil pressure -1-  .
      1. 1.2.1  Catch any escaping engine oil.
