Component Overview

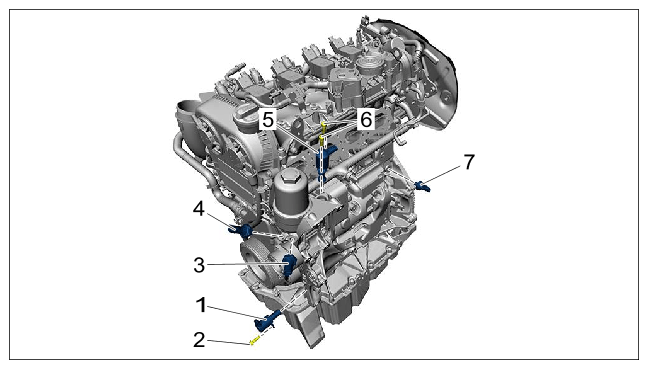

Fig 1: Oil-Pressure Sender Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Assembly overview - oil-pressure sender

1. Pressure-regulating valve -N428- (with sealing ring)
2. Screw for pressure-regulating valve -N428-
3. Oil-pressure sender for reduced oil pressure -F378- (sealing ring cannot be replaced separately)
4. Oil-pressure sender -F22- (sealing ring cannot be replaced separately)
5. Control valve for piston cooling nozzles -N522- (with sealing rings)
6. Screws on control valve for piston cooling nozzles -N522-
7. Oil-pressure sender -F447- (sealing ring cannot be replaced separately)
