Drain Engine Oil

Information

• Only use engine oils that have been tested and approved by Porsche AG.
• Dispose of used oil and oil filter in accordance with legal requirements in your country.

1. Have a suitable container ready for collecting the engine oil.
2. Open the cap -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cap

3. Disconnect ATF lines -1-  .

   For plastic oil pan

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

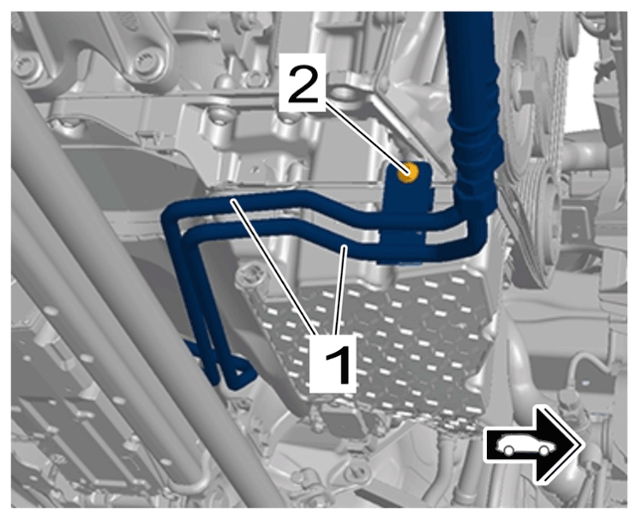

   Bracket for ATF lines

   1. 3.1  Unscrew screw -2-  .
   2. 3.2  Leave ATF lines -1-  hanging at the side.
4. Drain engine oil.

   For plastic oil pan

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

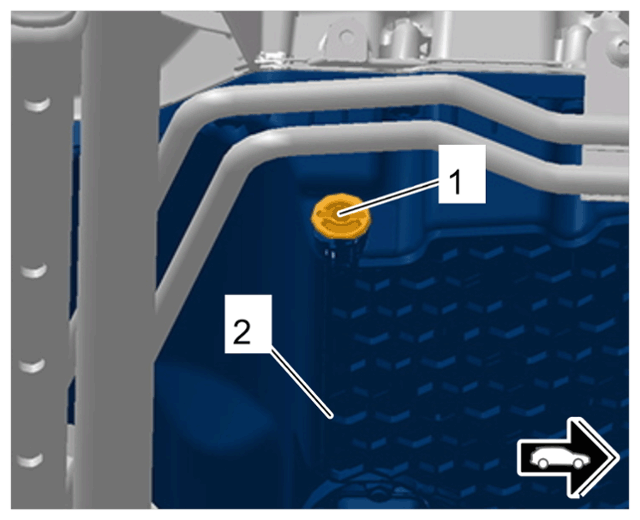

   Oil drain plug

   1. 4.1  Press ATF lines up slightly until the oil drain plug -1-  is accessible.
   2. 4.2  Unscrew oil drain plug -1-  using T10549 - assembly tool  , remove it from the oil pan -2-  and drain engine oil into a suitable container.
   3. 4.3  Fit oil drain plug -1-  with a new  O-ring and tighten as far as it will go using T10549 - assembly tool  .
5. Secure ATF lines -1-  .

   For plastic oil pan

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bracket for ATF lines

   1. 5.1  Position ATF lines -1-  .
   2. 5.2  Fit and tighten screw -2-  .

      Tightening torque 8 Nm (6.5 ftlb.)

6. Drain engine oil.

   For steel oil pan

   1. 6.1  Unscrew oil drain plug and drain engine oil into a suitable container.
   2. 6.2 Fit and tighten new  oil drain plug

      Tightening torque 30 Nm (22 ftlb.)
