Checking Engine-Oil Level

NOTIFICATION

Incorrect oil level

• Risk of damage to engine or catalytic converter
  1. → Check the oil level regularly.
  2. → The oil level must not fall below the Minimum marking or rise above the Maximum marking.
  3. → Only use engine oil approved by Porsche.

Information

Test conditions for checking engine-oil level:

• Vehicle is parked horizontally
• Engine at operating temperature
• The engine must be left running at idle speed for one minute. Then, the engine-oil level must be checked after two minutes with the engine stopped.

Information

Generally, the engine-oil level should be checked using the oil level display in the instrument cluster.

If there is no oil level display available, the test must be performed using T40178B - Oil gauge tester  .

For instructions for checking the oil level using the instrument cluster, see Driver's Manual.

Check using T40178B - oil gauge tester  as follows:

1. Remove stopper from guide for oil dipstick.
2. T40178B - Oil gauge tester  must be adjusted.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

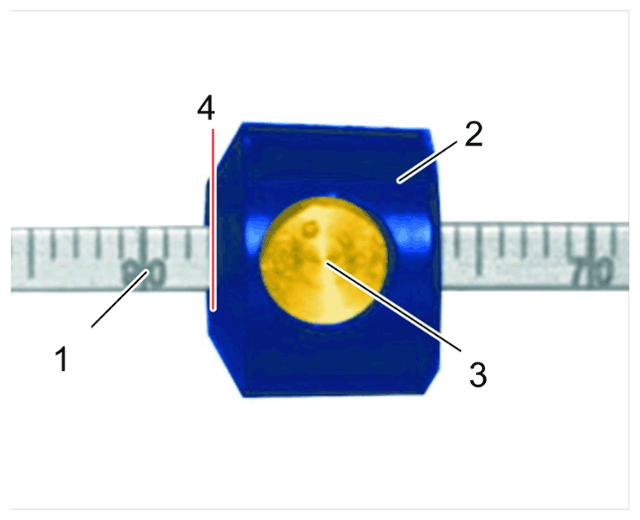

   Adjustment value on oil gauge tester

   1. 2.1  Loosen the knurled screw -3-  from the oil dipstick -1-  .
   2. 2.2  Position adjusting ring -2-  according to the value shown in the table; the adjustment value must be read off at the end of the adjusting ring -4-  .
   3. 2.3  Fit the knurled screw -3-  on the oil dipstick -1-  .
3. T40178B - Oil gauge tester  must be pushed as far as it will go (setting ring) into the oil dipstick guide tube.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oil dipstick scale

4. T40178B - Oil gauge tester  must then be pulled out in order to read off the value on the lower scale. Oil dipstick scale

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oil dipstick scale

5. Correct the oil level if necessary.

   > 170117 - DRAINING AND FILLING ENGINE OIL (R4)

6. Insert stopper into the oil dipstick guide.
