Installing Battery Sensor
Information
Switch off all loads and keep transmitter key outside of the transmission range (at least 2 metres/6 feet).
- Do not disconnect the battery while the engine is running.
- Disconnect and re-connect battery with extreme caution.
Information
After replacing the battery sensor, the battery sensor will be detected automatically by the gateway control unit.
- Installation is performed in reverse order. Pay particular attention to the following:
Tighten fastening nut -3- to > Tightening - torque 18 Nm (13 ftlb.) .

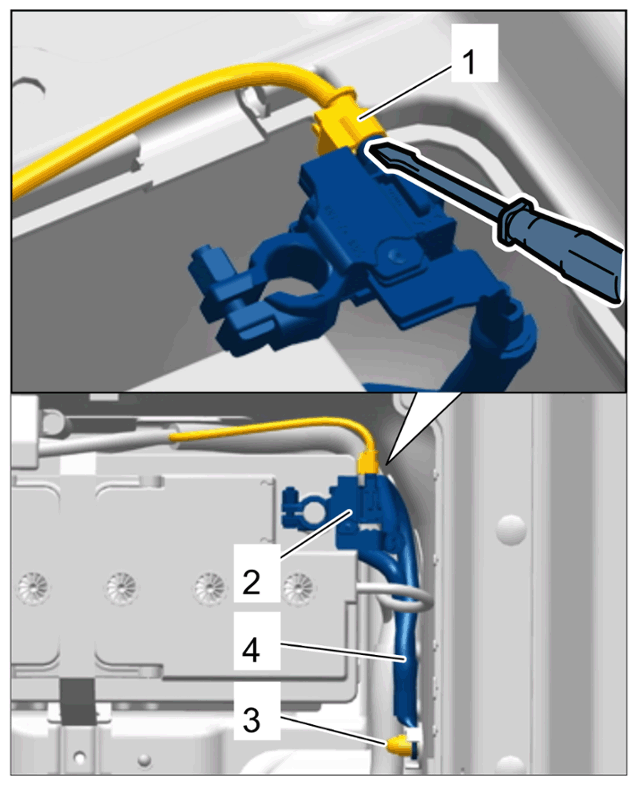

Battery sensor
