WM, 153519 - Removing And Installing Control Chain (V6 Turbo): Tools

WARNING: This page is about a different variant/trim than selected.

Tool denomination	Type	Tool number	Image
counterhold tool	VW tool	T90001	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Wrench, SW21	VW tool	T40263	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
adapter	VW tool	T40314	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

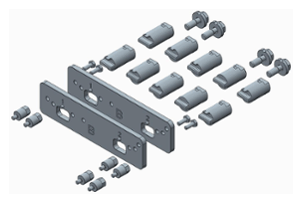

camshaft clamp	VW tool	T40331	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

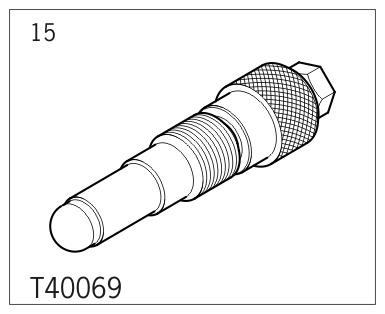

locking pin	VW tool	T40069	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

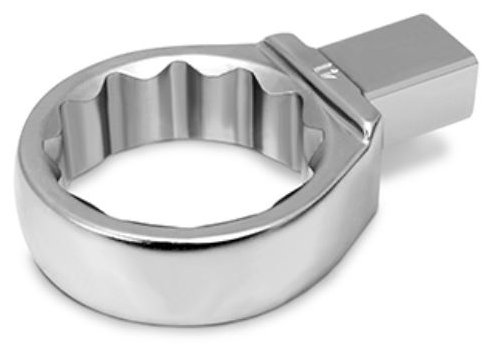

ring spanner insert, a/f 41	Vehicle-specific workshop equipment	VAS 261 001	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

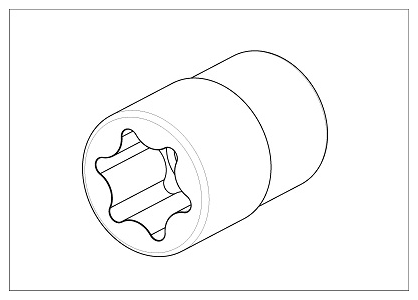

socket E24	VW tool	T90000	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

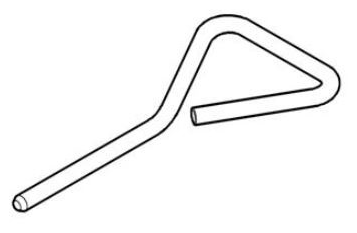

locking pin	VW tool	T03006	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
torque wrench 6-50 Nm (4.5-37 ftlb.)	General workshop equipment	V.A.G 1331A	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

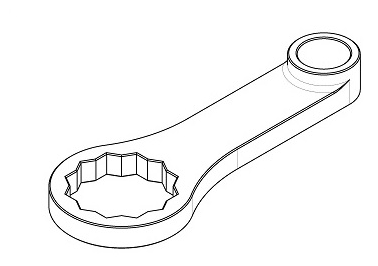

counter-hold tool	VW tool	T90002	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
