Remove Control Chain

NOTIFICATION

Timing not set correctly

• Risk of engine damage
• Rough running engine
• Loss of engine power
  1. → Do not use force when fitting the staking tool.
  2. → Make sure that the gap is equal on both sides.
  3. → When inserting the staking tools, do not use force to turn the camshafts against any resistance.
  4. → The engine must be exactly at top dead centre.
  5. → The opposite cylinder must be at ignition TDC.

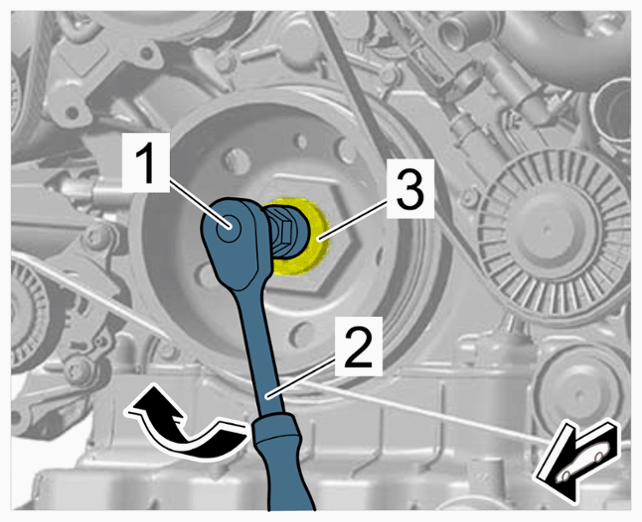

1. T40263 - Wrench, SW21-2-  and T40314 - adapter-1-  must be fitted on the crankshaft -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tools on crankshaft

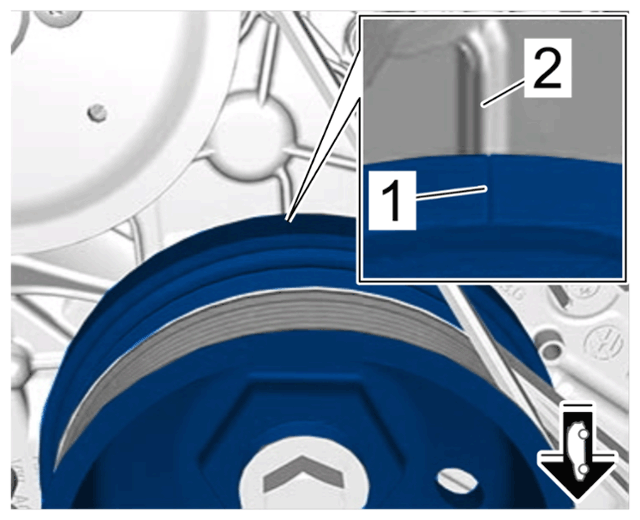

2. Use T40263 - wrench, SW21  and T40314 - adapter  to turn the crankshaft clockwise until the marking on the vibration damper -1-  is at TDC -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   TDC marking on vibration damper

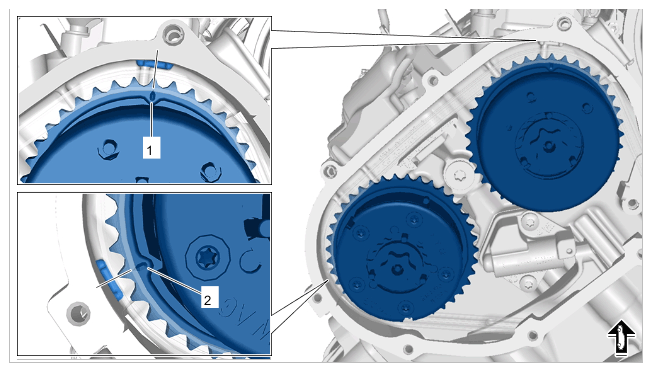

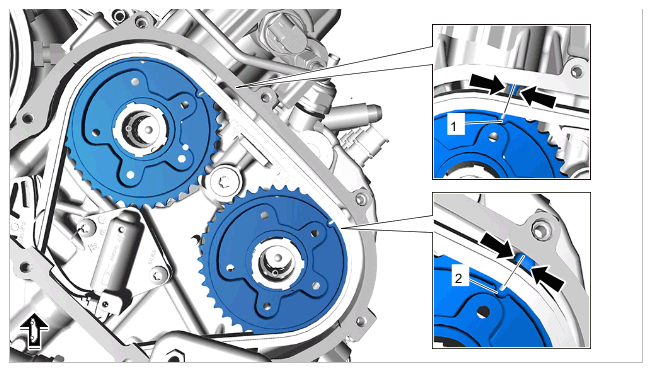

3. Check that the markings on the camshaft actuators (cylinder bank 1) -1 and 2-  are aligned with the reference points -Arrows-  on the camshaft housing. If necessary: Turn the crankshaft one turn further until it is back at TDC.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Markings on camshaft actuator (cylinder bank 1)

4. The markings on the camshaft actuators (cylinder bank 2) -1 and 2-  must be aligned with the reference points -Lines-  on the camshaft housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Markings on camshaft actuator (cylinder bank 2)

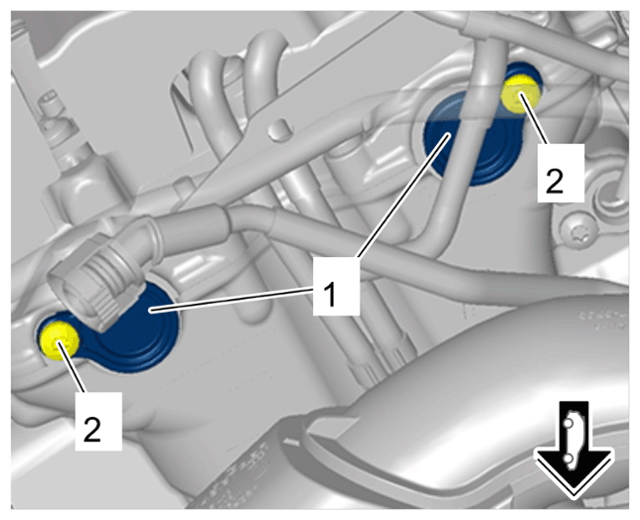

5. Remove stoppers on camshafts -1-  .
   1. 5.1  Unscrew screws on stoppers on camshafts -2-  .
   2. 5.2  Remove stoppers -1-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Stoppers on camshafts

      Information

      The camshaft clamp must be easy to insert and must not be fitted using a striking tool.

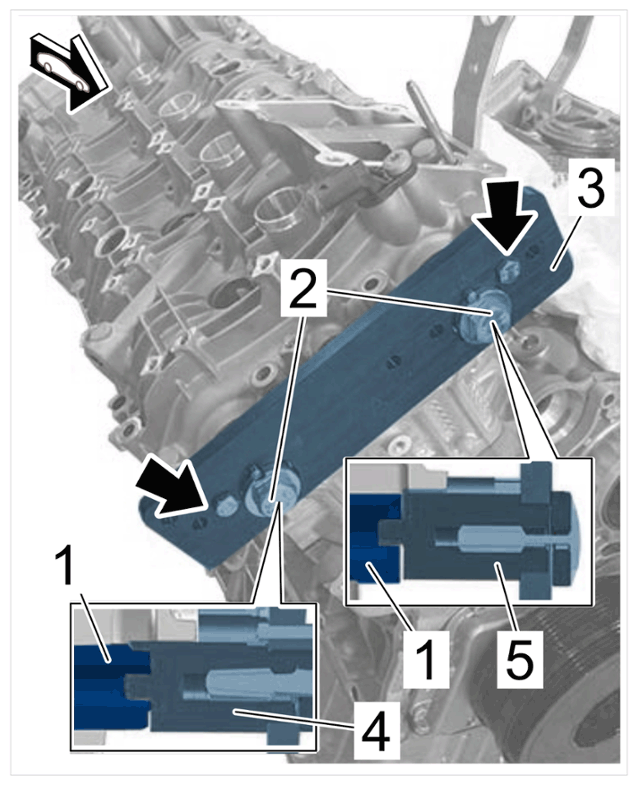

6. Insert T40331 - camshaft clamp-2 to 5-  .
   1. 6.1  Tightening adapter for camshaft clamp T40331/2  on camshaft housing 9 Nm
   2. 6.2  Insert camshaft clamp T40331/1 -3-  on the right cylinder bank 2 with the inscription "B" facing away from the engine. Turn the crankshaft back and forth slightly to do this, if necessary.
   3. 6.3  Insert camshaft clamp T40331/1 -3-  on the right cylinder bank 1 with the inscription "B" facing away from the engine. Turn the crankshaft back and forth slightly to do this, if necessary.
   4. 6.4  On the right cylinder bank 1, secure camsha  f t clamps T40331/1, T40331/8 and T40331/5 -3 - to 5-  using T40331/9 -2-  .
   5. 6.5  On the right cylinder bank 2, secure camshaft clamps T40331/1, T40331/8 and T40331/5 -3 - to 5-  using T40331/9 -2-  .
   6. 6.6  Tighten screws on the camshaft clamps -Arrows-  . 9 Nm

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Camshaft clamp

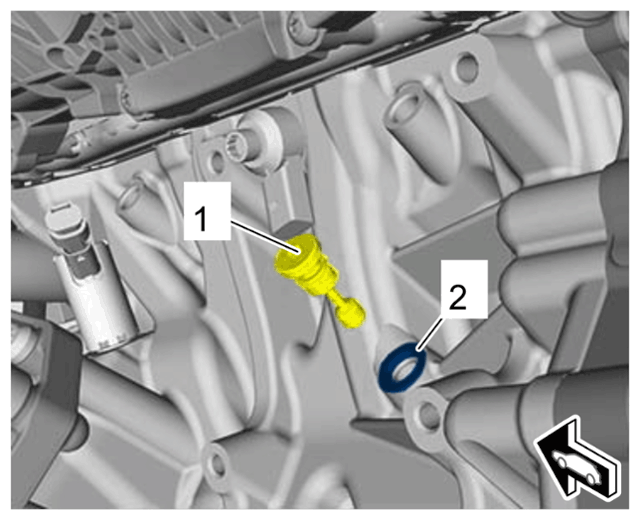

7. Secure the crankshaft.
   1. 7.1  Unscrew screw plug -1-  from bore -2-  .
   2. 7.2  Screw T40069 - locking pin  into the bore -2-  by hand.

      Turn the crankshaft back and forth slightly to do this, if necessary.

   3. 7.3  Tighten T40069 - fastening screw  . 20 Nm

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Securing crankshaft

      Information

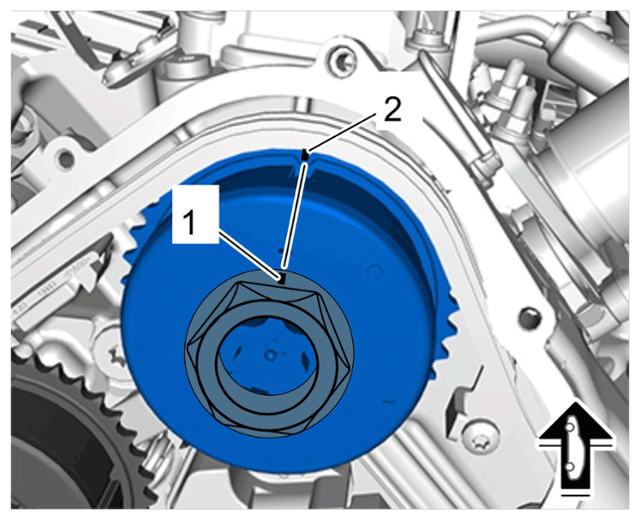

      The T90001 - counterhold tool  can only be inserted at one position. To do this, the markings -1 and 2-  on the camshaft actuator and chain housing must be aligned.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      T90001 on camshaft actuator

8. Fit VAS 261 001 - ring spanner insert, a/f 41  with T90001 - counter-hold tool  on the camshaft actuator. T90001 on camshaft actuator

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   T90001 on camshaft actuator

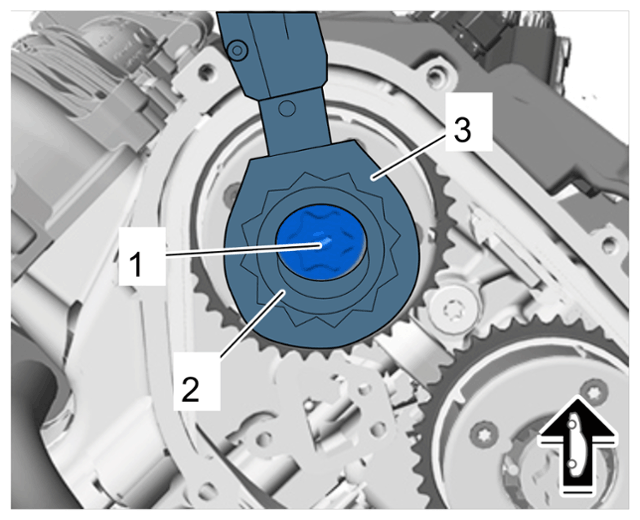

9. Release camshaft actuator -1-  .
   1. 9.1  Counter the camshaft actuator -1-  using VAS 261 001 - ring spanner insert, a/f 41-2-  and T90001 - counterhold tool  and loosen using T90000 - socket E24-3-  .

      Do not unscrew the camshaft actuator -1- from - the camshaft.

   2. 9.2  Mark camshaft actuators and camshafts for re-installation using a coloured marker.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Camshaft actuator

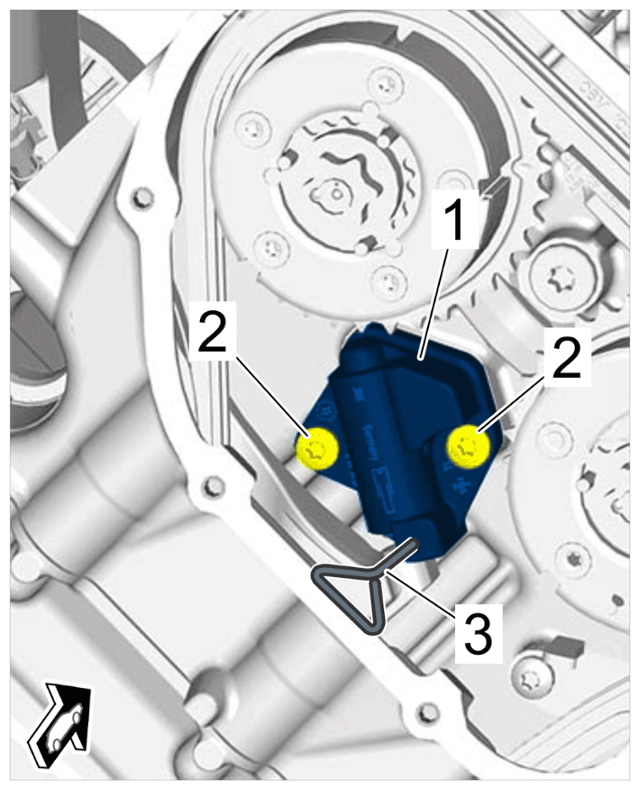

10. Lock both chain tensioners -1-  .

    Information

    The chain tensioner piston is oil-damped and can only be pressed back slowly and with constant pressure.

    1. 10.1  Press the chain tensioner piston -1-  back fully using a screwdriver.
    2. 10.2  Fix the chain tensioner -1-  in place using T03006 - locking pin-3-  .

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

       Securing the chain tensioner

11. Unscrew control valves and remove camshafts actuators.

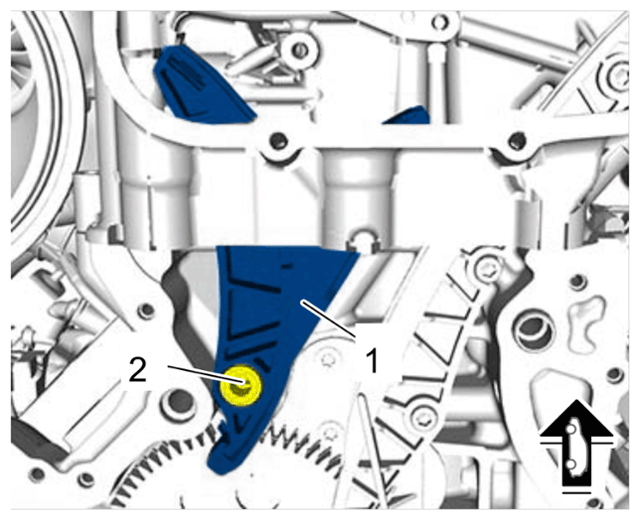

12. Remove tensioning rail -1-  .
    1. 12.1  Unscrew bearing pin for tensioning rail -2-  .
    2. 12.2  Remove tensioning rail -1-  .

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

       Tensioning rail for cylinder bank 1

13. Remove timing chains together with tensioning rail.
