Installing ATF Pan

NOTIFICATION

Dirt and contamination

• Risk of damage to units or components

  → Protect components from dirt and contamination.

  → Clean or replace dirty components.

Information

• The engine must not be started if there is no ATF in the transmission.
• Risk of damage to the transmission.

1. Fit  new seal -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TF-pan seal

1. Clean sealing face on the ATF pan -2-  .

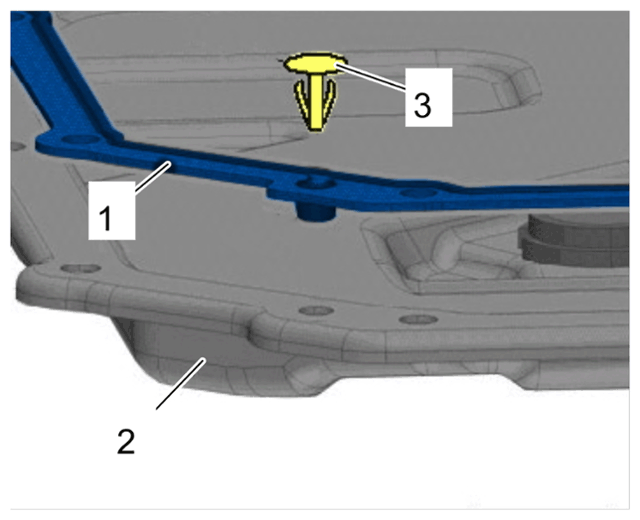

2. Insert nubs of the new  seal -1-  into the ATF pan -2-  .

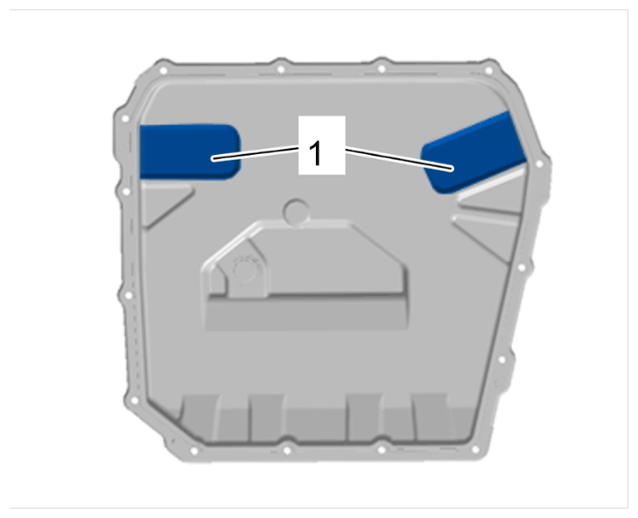

3. Clean the magnetic strips -1-  and check that they are fitted over the entire surface in the ATF pan.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Magnetic strips in ATF pan

4. Install ATF pan -1-  .

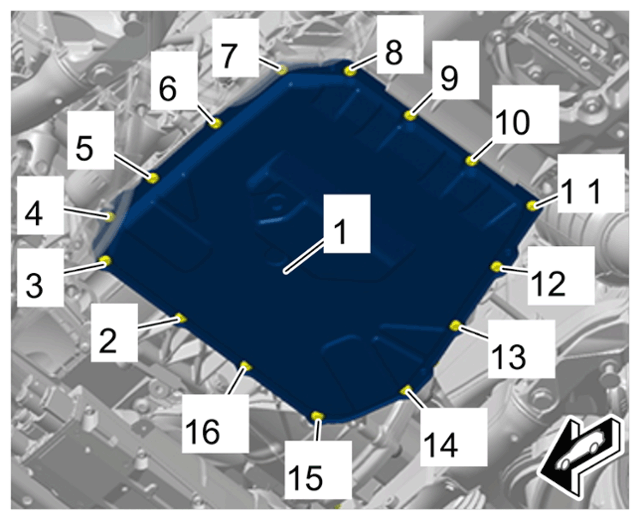

   Fig 1: ATF Pan Screws Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   ATF pan

   1. 3.1  Clean the sealing surface on the transmission.
   2. 3.2  Fit the ATF pan -1-  , fit screws -2 to 16-  and tighten crosswise.

      > Tightening - torque 10 Nm (7.5 ftlb.)
