Mounting Double Clutch Transmission

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing
→ Secure components to prevent them from falling down.

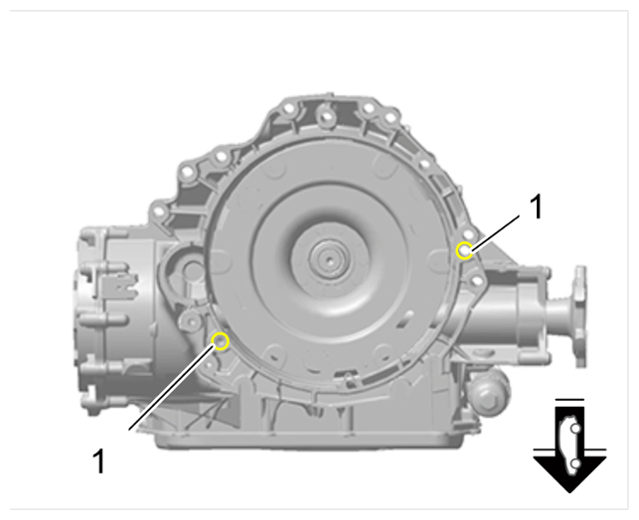

Check that the intermediate plate on the joint flange is engaged and pushed onto the dowel sleeves -1- Replace missing dowel sleeves -1- if necessary.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Dowel sleeves

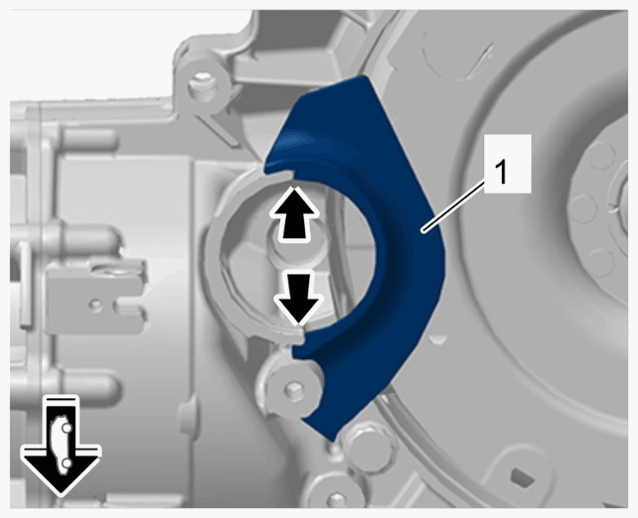

Check that the locking element of the starter -1- is inserted correctly and move it into installation position if necessary -Arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Locking element of starter
Fit double clutch transmission.
1. 3.1 Screw in screws on double clutch transmission -1 to 5- as far as they will go by hand.
2. 3.2 Tighten screws on double clutch transmission -1 and 2- .
  > Initial - tightening 30 Nm (22 ftlb.)

  > Final tightening + 105
3. 3.3 Tighten screw on double clutch transmission -3- .
  > Initial - tightening 30 Nm (22 ftlb.)

  > Final tightening + 105° 3.4 Tighten screw on double clutch transmission -5- .

  > Initial - tightening 15 Nm (11 ftlb.)

  > Final tightening + 105°
4. 3.5 Tighten screws on double clutch transmission -4- .
  > Initial - tightening 15 Nm (11 ftlb.)

  > Final tightening + 105°

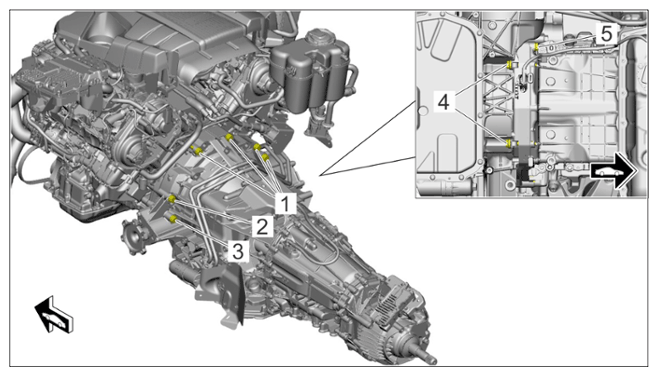

  Fig 1: Double Clutch Transmission Screws Tightening Sequence
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Flange screws securing engine to transmission
Secure the starter.
> 276019 - REMOVING AND INSTALLING STARTER (V6 TURBO)
> T40294 - Hook and support tool must now be removed.

Tighten new screws on drive plate.

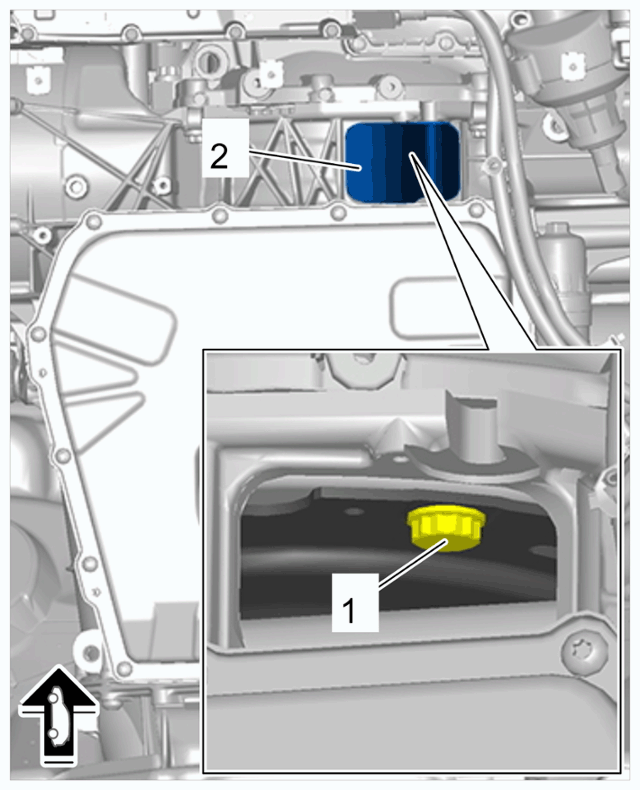

6.3 Insert cover on service opening -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drive plate screws
