Removing Transmission Control Unit

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit

  → Remove the ignition key and switch off load before disconnecting or removing load.

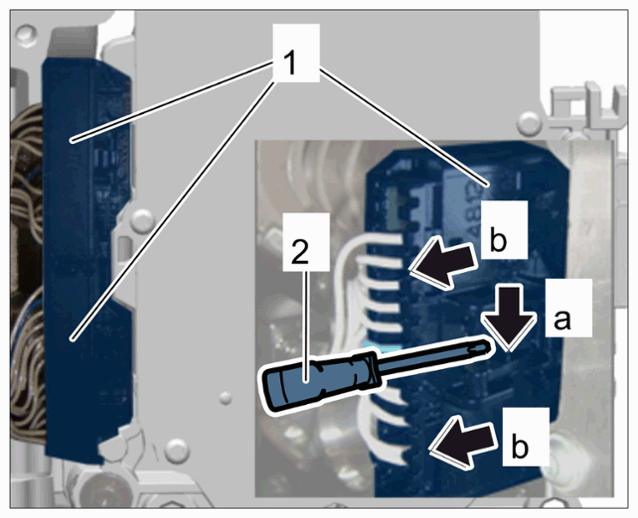

1. Release electric plug connections -1-  using a thin Phillips screwdriver -2-  (-arrow a-  ) and disconnect them -arrows b-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

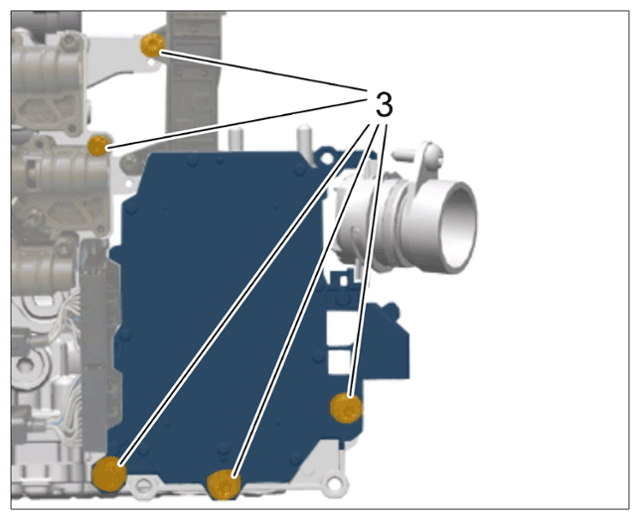

2. Remove screws -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Transmission control unit

3. Pull off transmission control unit.
