Installing Locking Cable

WARNING: This page is about a different variant/trim than selected.

Information

Loosen clamping screw for locking cable by only about 1 turn.
The clamping screw is only accessible in selector-lever position "P".
When the clamping screw is loosened, the selector lever must remain in position "P".

Information

Do not apply lateral forces to the selector knob pull rod as it can break off.

Install locking cable -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

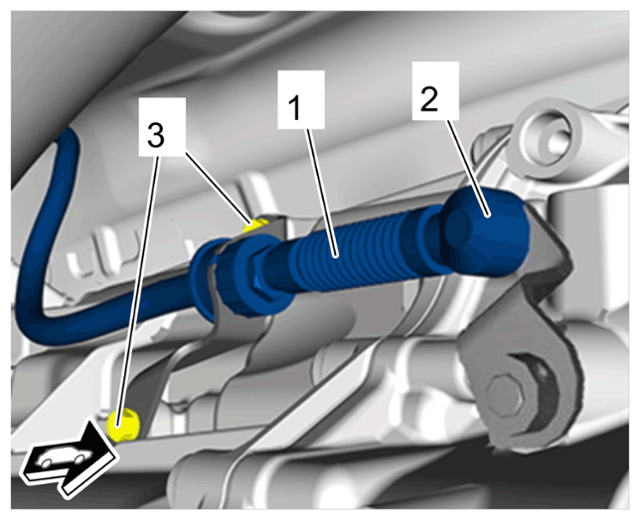

Locking cable
1. 1.1 Position locking cable -1- together with holder.
2. 1.2 Fit and tighten screws on locking cable holder -3- .
  > Tightening - torque 8 Nm (6 ftlb.)
3. 1.3 Secure ball socket -2- .
Secure locking cable -1- to selector support.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

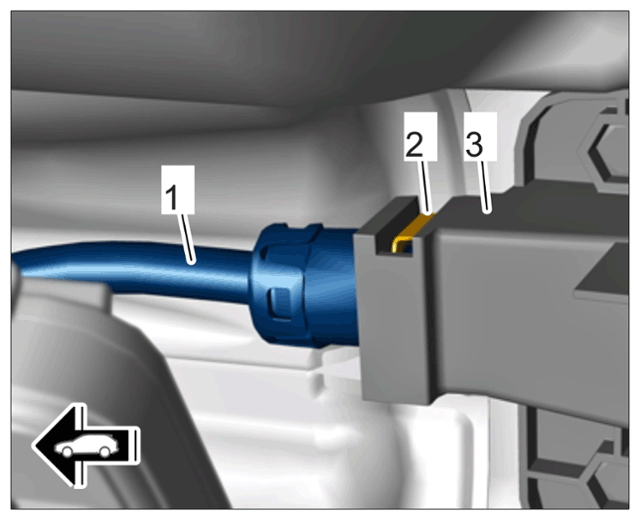

Safety clip for locking cable
1. 2.1 Guide locking cable -1- into selector support -3- and engage safety clip -2- .
Install heat shield -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

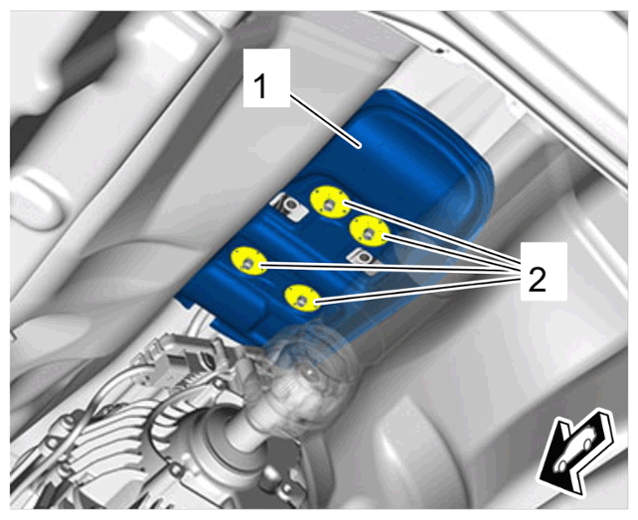

Heat shield
1. 3.1 Position heat shield -1- .
2. 3.2 Tighten clamping washers -2- .
Secure transmission support -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

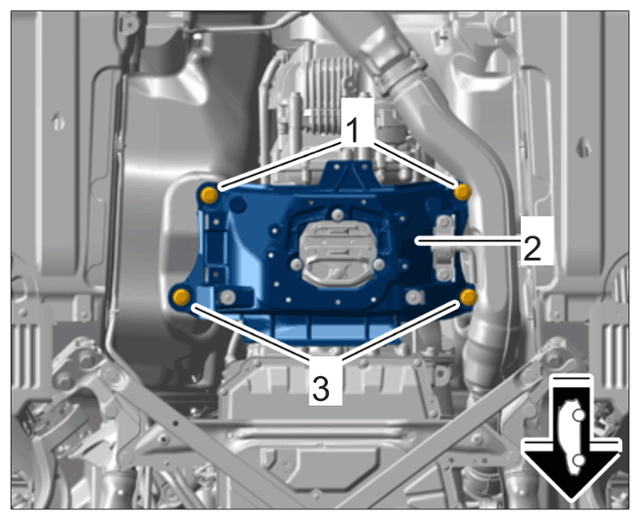

Transmission support
1. 4.1 Lift transmission and transmission support using > VAS 6931 - engine and gearbox jack .
2. 4.2 Fit and tighten screws -1 and 3- .
  > Tightening - torque 70 Nm (52 ftlb.)
3. 4.3 > VAS 6931 - Engine and gearbox jack must now be removed.
Tighten clamping screw for locking cable -1- using > T40031 - socket insert a/f 5-2- .
> Tightening - torque 13 Nm (9.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

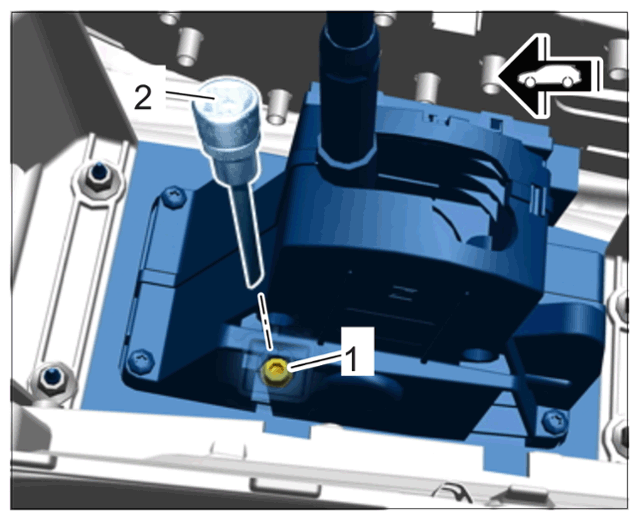

Clamping screw for locking cable
Install insulating mat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

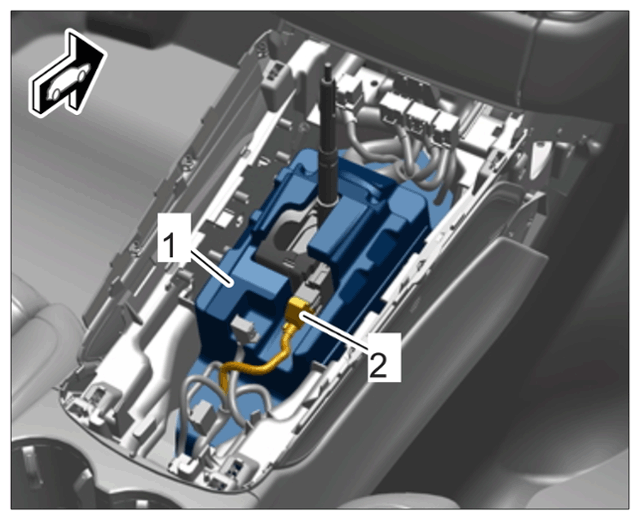

Insulating mat
1. 6.1 Position insulating mat -1- .
2. 6.2 Connect and lock cable plug -2- .
Install switch console holder

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

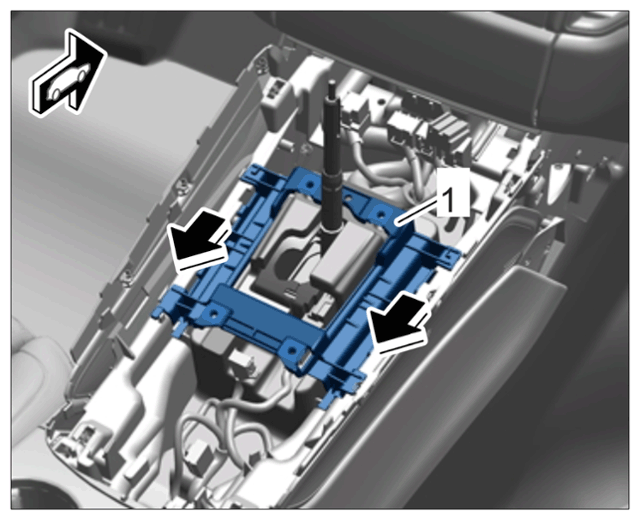

Switch console holder
1. 7.1 Position switch console holder -1- and lock it in -direction of arrow- .
