Removing Selector Knob

WARNING: This page is about a different variant/trim than selected.

Information

No lateral forces must be applied to the pull rod of the selector knob.

  1. Remove selector knob -1-  .

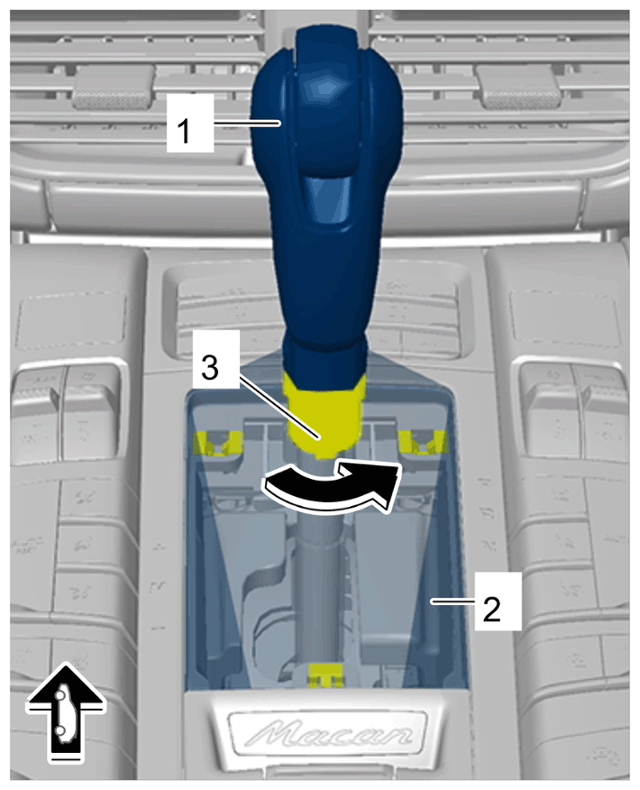

    G15152711Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Selector knob

    1. 1.1  Carefully unclip shift lever boot -2-  .
    2. 1.2  Turn locking mechanism -3-  45 degrees in -direction of arrow-  , detach selector knob -1-  from pull rod upwards and remove together with shift lever boot -2-  .
