Cleaning ATF (Line And Cooler)

NOTIFICATION

Dirt and contamination

• Risk of damage to units or components

  → Protect components from dirt and contamination.

  → Clean or replace dirty components.

1. Remove oil filter housing -1-  .
   1. 1.1  Loosen screws on oil filter housing -1-  .
   2. 1.2  Loosen screw for line at oil filter housing -3-  .
   3. 1.3  Guide out oil filter housing -1-  .
   4. 1.4  Pull ATF oil pipes -5-  and sealing rings -6-  out of the oil filter housing and replace them.
   5. 1.5  Replace sealing ring -4-  .
2. Position used oil collection container under connection point.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

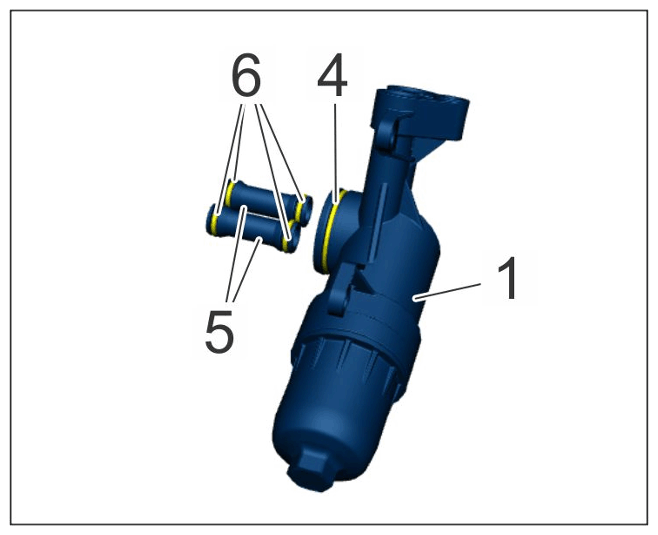

   Oil filter housing

3. Blow out and flush the ATF line.
   1. 3.1  Blow out ATF line and ATF cooler at the line opening using compressed air (max. 10 bar) -2-  .
   2. 3.2  Fill > VAS 6563 - transmission fluid filler pump set, Porsche set  with two litres of new ATF and connect to the line opening -2-  .
   3. 3.3  Flush ATF line and cooler at the line opening -2-  using two litres of new ATF.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

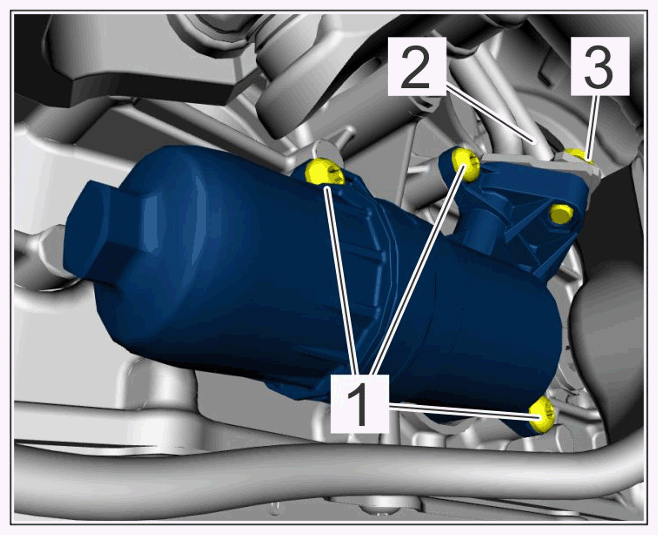

   Flushing ATF line and cooler

4. Install oil filter housing.
   1. 4.1  Press oil pipes -5-  and sealing rings -6-  as far as they will go into the oil filter housing.
   2. 4.2  Insert oil filter housing
   3. 4.3  Insert ATF line into the oil filter housing as far as it will go by hand, then screw it on.
   4. 4.4  Tighten screws on oil filter housing

      > Tightening - torque 10 Nm (7.5 ftlb.)

   5. 4.5  Tighten screw for line on oil-filter housing -3-  using > VAS 6928 - socket set, 39-piece  and > T10384 - ratchet ring wrench a/f 13  .

      > Tightening - torque 20 Nm (15 ftlb.)
