Removing Leakage Diagnosis Pump

Information

The leakage diagnosis unit is only installed on vehicles for the USA and China.

1. Removing leakage diagnosis pump -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

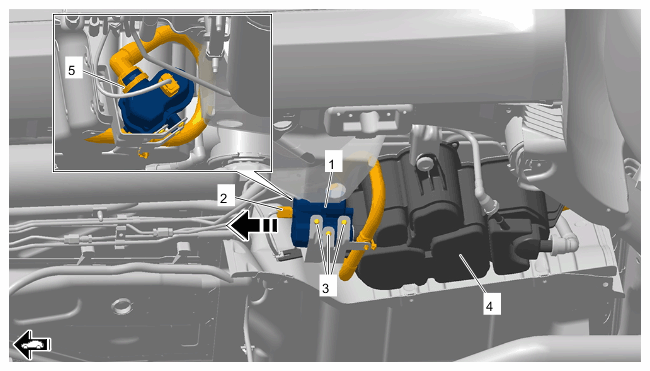

   Leakage diagnosis pump on active carbon filter

   1. 1.1  Release and disconnect electric plug connection -2-  .
   2. 1.2  Remove screws on leakage diagnosis pump -3-  .
   3. 1.3  Pull leakage diagnosis pump -1-  off the active carbon filter -4-  (-Arrow-  ).
   4. 1.4  Turn the leakage diagnosis pump -1-  in such a way that connection -5-  is accessible.
   5. 1.5  Release connection -5-  , disconnect and remove leakage diagnosis pump -1-  .
   6. 1.6  Close off connections using suitable stoppers.
