Preliminary Work - Fuel Tank Section

WARNING: This page is about a different variant/trim than selected.

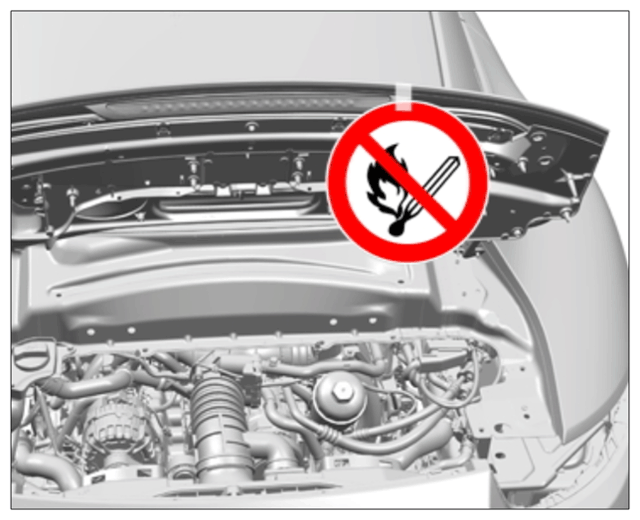

Attach or mount a warning sign in a clearly visible position on the vehicle. > Example of warning sign

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Example of warning sign

Information
- The position of the fuse for the fuel pump can be found in the current Porsche After Sales vehicle electrical system documentation (PAB) fuse assignment.
- => PPN => Porsche After Sales vehicle electrical system documentation (PAB)
Relieve fuel pressure in the system.
1. 2.1 Pull out fuse for fuel pump.
2. 2.2 Start the engine, wait until it stops and then re-insert the fuse.
Remove fuel tank.
- > 201019 - REMOVING AND INSTALLING FUEL TANK
