Installing Supply Line - Section At High-Pressure Pump

WARNING: This page is about a different variant/trim than selected.
  1. Installation is performed in reverse order. Pay particular attention to the following:
    1. 1.1  Tighten nuts -9-  .
      • Tightening torque 9 Nm (6.5 ftlb.)

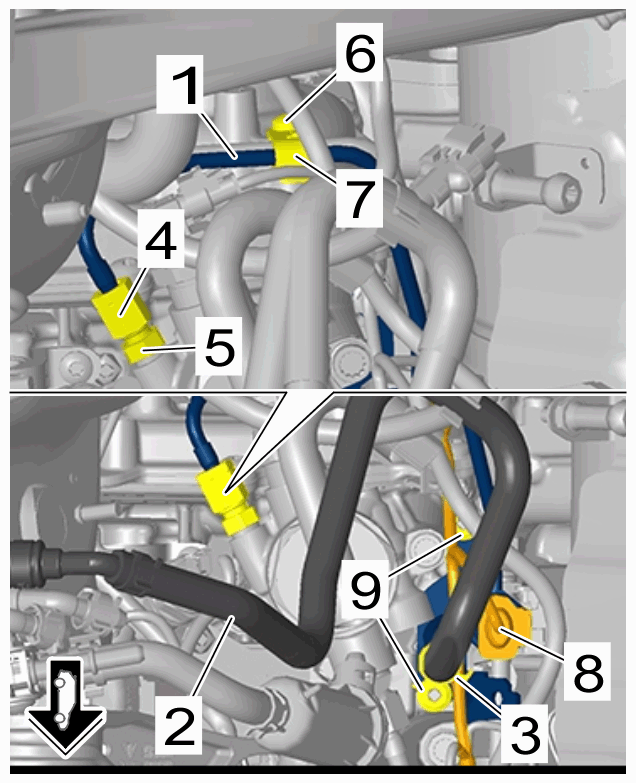

      G15151829Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Supply line on high-pressure pump

    2. 1.2  Tighten screw on line bracket -6-  .
      • Tightening torque 9 Nm (6.5 ftlb.)
      G15151830Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Supply line on high-pressure pump

    3. 1.3  Tighten union nut -4-  and counter at the hexagon -5-  at the same time.
      • tightening torque of 10 Nm (7.4 ftlb.)
      G15151831Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Supply line on high-pressure pump

    4. 1.4  Tighten screw on holder -3-  .
      • Tightening torque 9 Nm (6.5 ftlb.)

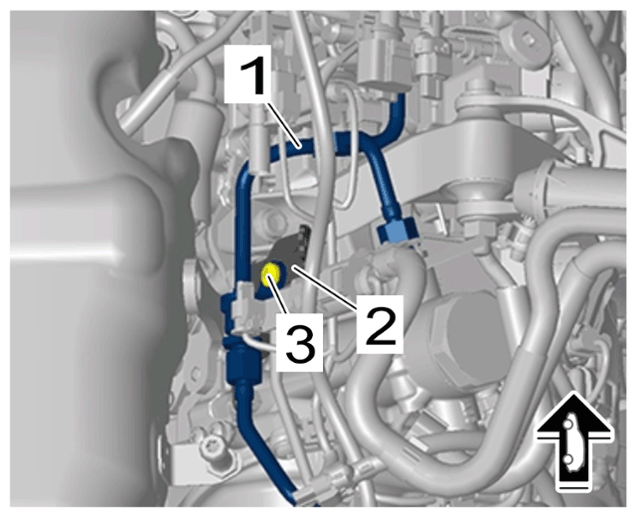

      G15151832Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Fuel line on holder
