Removing Fuel Level Sender

WARNING: This page is about a different variant/trim than selected.
WARNING: Toxic substances
  • Danger of poisoning or suffocation
  • Danger of burns to the eyes and skin
    1. → Ventilate the work area well.
    2. → Never ingest or inhale.
    3. → Read specific information on the Hazard Sheet.
    4. → Wear personal protective gear.
    5. → Do not smoke, eat or drink in the work area.
WARNING: Highly inflammable or explosive materials
  • Danger of fire or explosion
    1. → Avoid contact with hot parts or sources of ignition.
    2. → Use suction to remove ignitable vapours.
    3. → Attach warning sign in a clearly visible position.
    4. → Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
    5. → Secure collection containers/vessels to prevent them from tipping over.

Information

  1. Remove fuel level sender -1-  .

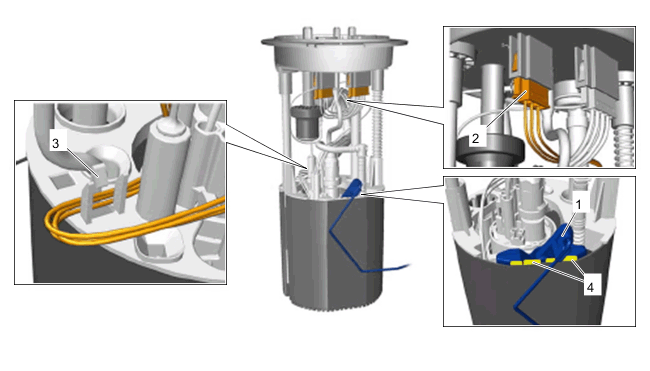

    G15151805Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fuel level sender

    1. 1.1  Release and disconnect electric plug connection -2-  .
    2. 1.2  Remove electric line from guide -3-  .
    3. 1.3  Press back locking lugs -4-  .
    4. 1.4  Remove fuel level sender -1-  .
  2. Set fuel level sender -1-  down on a clean surface.

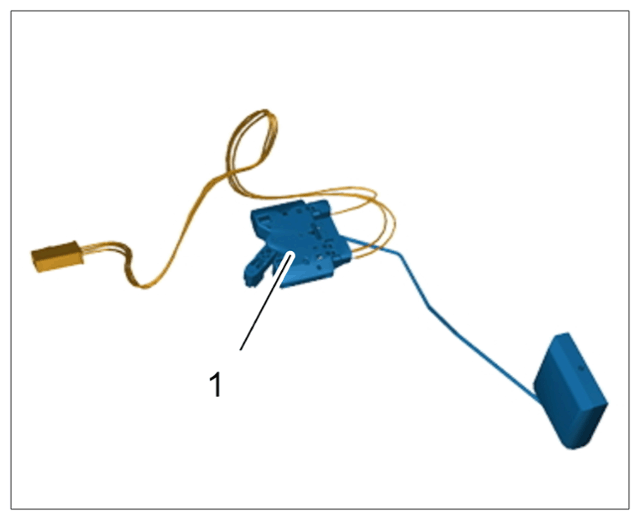

    G15151806Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fuel level sender
