Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance1 | Tolerance2 |
|---|---|---|---|---|---|
| Screw securing fuel tank to body | Tightening torque | 20 Nm (15 ftlb.) | |||
| Screw securing tank filler neck to wheel housing | M8 x 25 | Tightening torque | 15 Nm (11 ftlb.) | ||
| Screws securing stone guard to body | Tightening torque | 20 Nm (15 ftlb.) | |||
| Screws for heat shield on fuel tank | Tightening torque | 4 Nm (3 ftlb.) | |||
| Nut for centre rear heat shield | Tightening torque | 20 Nm (15 ftlb.) | |||

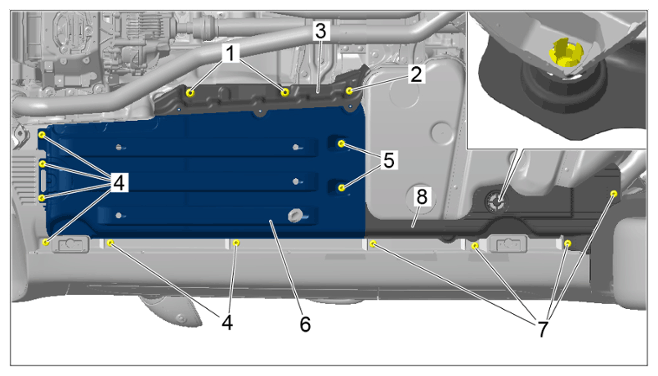

| Nuts securing right heat shield to body | Item 1 | Tightening torque | 2.5 Nm (1.75 ftlb.) |
Right heat shield
