Installing Pressure Sensor

WARNING: This page is about a different variant/trim than selected.
WARNING: Toxic substances
  • Danger of poisoning or suffocation
  • Danger of burns to the eyes and skin
    1. → Ventilate the work area well.
    2. → Never ingest or inhale.
    3. → Read specific information on the Hazard Sheet.
    4. → Wear personal protective gear.
    5. → Do not smoke, eat or drink in the work area.
WARNING: Highly inflammable or explosive materials
  • Danger of fire or explosion
    1. → Avoid contact with hot parts or sources of ignition.
    2. → Use suction to remove ignitable vapours.
    3. → Attach warning sign in a clearly visible position.
    4. →Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
    5. → Secure collection containers/vessels to prevent them from tipping over.
WARNING: Leaking fuel supply lines
  • Emerging fuel
  • Risk of fire
    1. → Perform leak test.

Information

Coat thread of the pressure sensor with Microgleit DF 977 S.  Observe drying time of at least 5 minutes before fitting.

  1. Install pressure sensor -1-  .

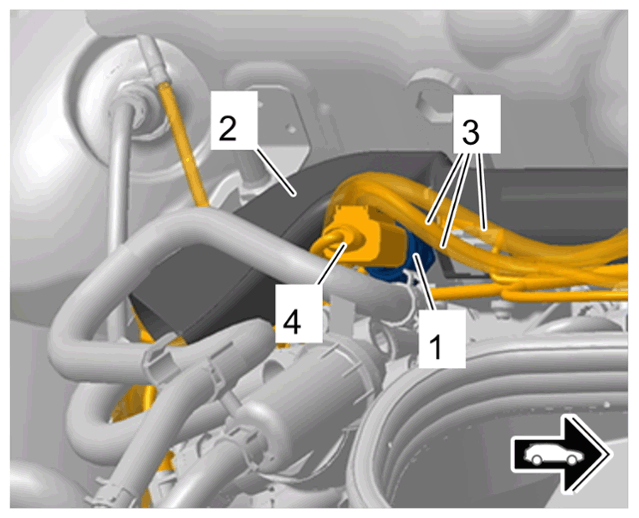

    G15151788Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure sensor

    1. 1.1  Coat thread of pressure sensor -1-  with a light coating of Microgleit DF 977 S.
    2. 1.2  Screw in and tighten pressure sensor -1-  .
    3. 1.3  Connect and lock cable plug -4-
