Tools And Materials

WARNING: This page is about a different variant/trim than selected.

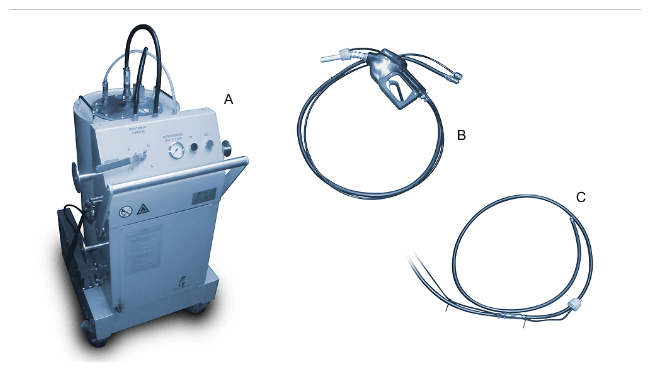

G15151781Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel transfer unit with accessories

  1. > VAS 5190A - Fuel extractor
  2. Special accessory: fuel nozzle (The fuel nozzle switches off automatically when the fuel tank is full)
  3. Suction line with venting device (rubber taper with transparent hose)

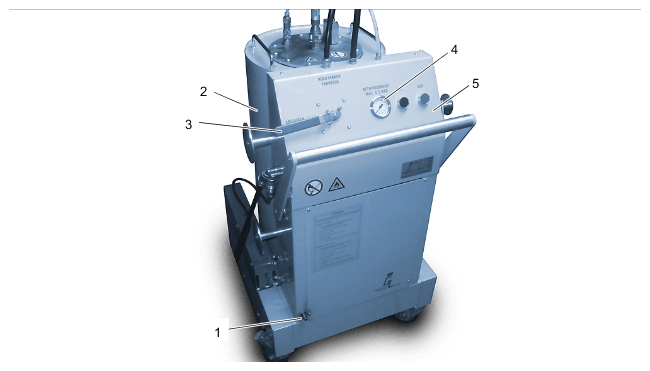

G15151782Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of fuel transfer system

  1. Compressed air connection (connection for unlubricated/oil-free compressed air)
  2. 110 liter fuel tank (exchangeable tank, the scale on the side starts at 10 liters. All other markings are shown in 5-litre steps)
  3. Changeover lever (for extracting fuel/refuelling vehicle)
  4. Operating pressure display of the pump (The pressure must not exceed 6.5 bar)
  5. On/Off switch for pump

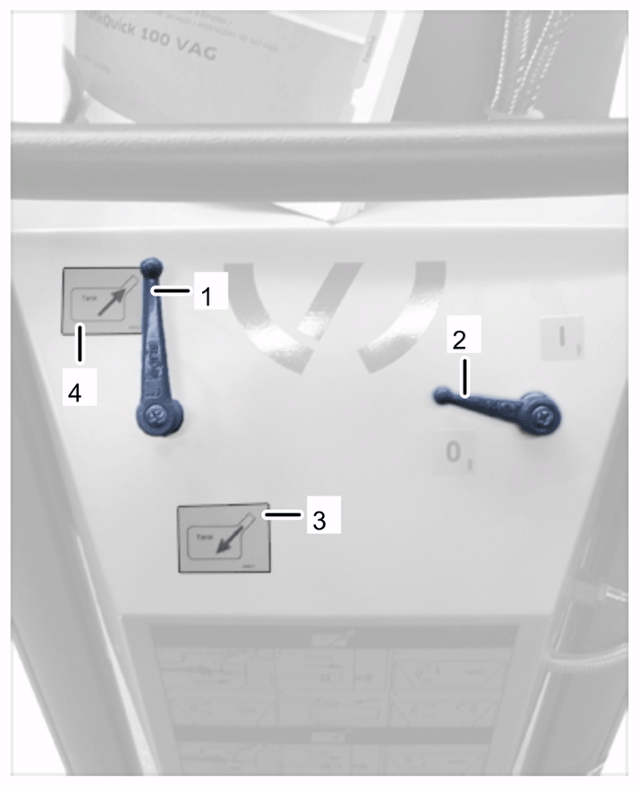

G15151783Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Using VAS 5190 A

  1. Set changeover lever to pump out/fill
  2. On/Off switch
  3. Lever position: fill
  4. Lever position: pump out
