Preliminary Work
WARNING: This page is about a different variant/trim than selected.
- Observe safety instructions when working on the fuel system.
- Connect a battery charger.
- Attach or mount a warning sign -1-
in a clearly visible position on the vehicle.

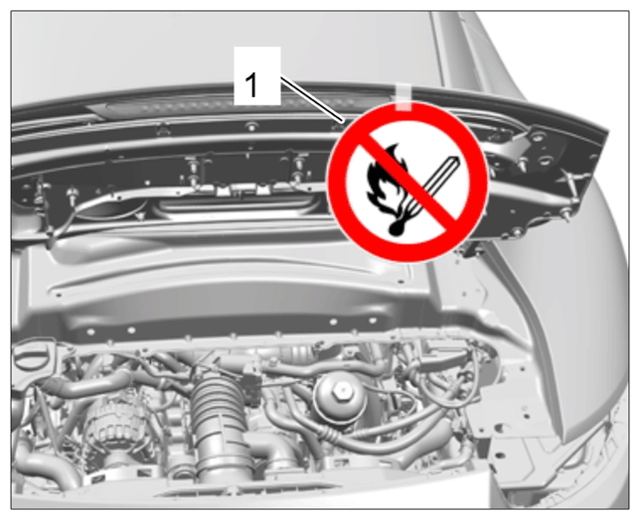

Example of warning sign when working on the fuel system
- Only when draining the fuel using the PIWIS Tester:
Disconnect supply line at the connection point on the underbody.
- Only when draining the fuel using a fuel transfer unit:
Disconnect fuel pump.
