Tools And Materials

WARNING: This page is about a different variant/trim than selected.

Overview of individual components of > VAS 6774 - Fuel Identification Unit

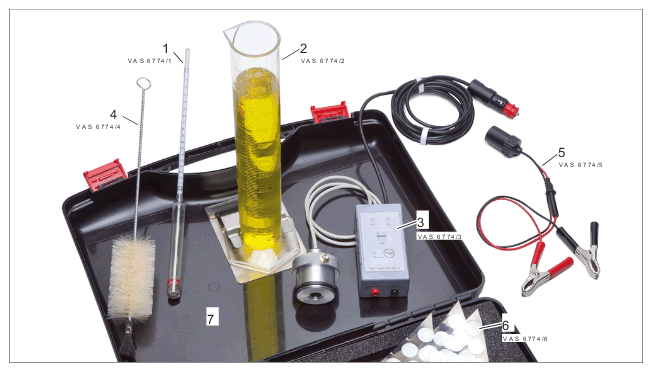

Fig 1: Fuel Identification Unit Component Location (VAS 6774)
G15151761Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel identification unit VAS 6774

  1. VAS 6774/1: Spindle (density gauge)
  2. VAS 6774/2: Measuring cylinder
  3. VAS 6774/3: Fuel detector (for measuring diesel)
  4. VAS 6774/4: Cleaning brush
  5. VAS 6774/5: Adapter with clamps for connecting a 12-volt battery
  6. VAS 6774/6: Filter pads for fuel detector
  7. Case
