Subsequent Work

Information

• The position of the fuse for the fuel pump can be found in the current Porsche After Sales vehicle electrical system documentation (PAB) fuse assignment
• → PPN  → Porsche After Sales vehicle electrical system documentation (PAB)

1. Remove test tools and soak up escaping fuel using suitable aids.
2. Connect supply line.

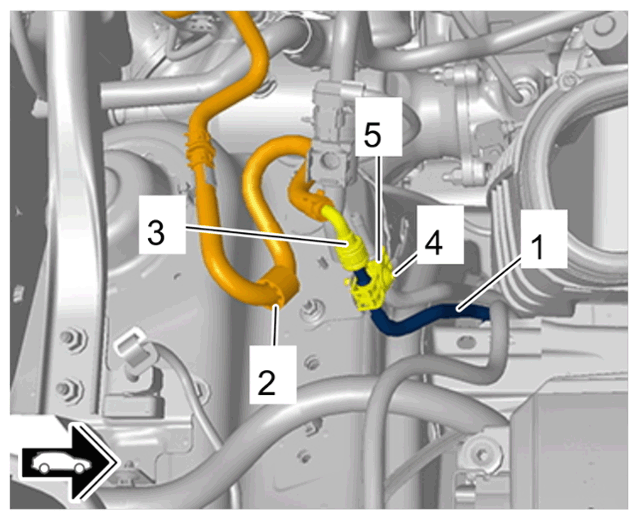

   1. 2.1  Push quick connector -3-  for engine compartment section -2-  onto underbody section -1-  and lock it.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Underbody section to engine compartment section

3. Switch on ignition and visually check supply line for leaks.
4. Switch off the ignition.
5. Remove battery charger.
6. Remove warning sign.
