Subsequent Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove all test tools.
  2. Connect supply line -1-  .

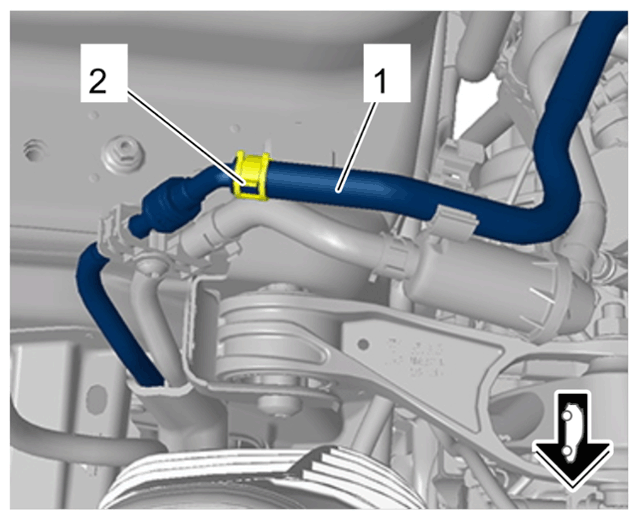

    G15151754Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Supply line - engine compartment connection point (shown on the Macan as an example)

    1. 2.1  Connect connection point for supply line -1-  .
    2. 2.2  Fasten spring band clamp -2-  using > VAS 6890 - spring band clamp pliers  .
  3. Connect vehicle electrical system battery.
  4. Install engine cover (design cover).
