Group 28 - Ignition System: Ignition
WARNING: This page is about a different variant/trim than selected.

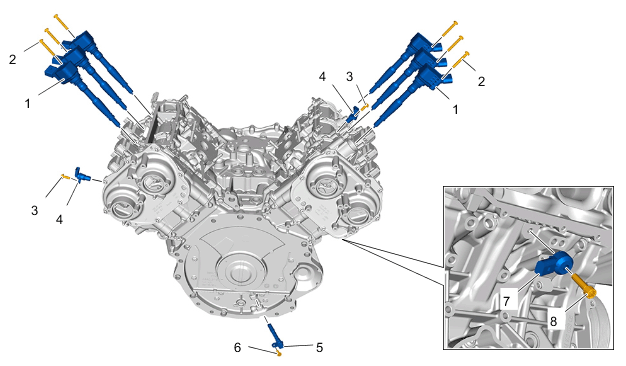

Ignition - V6 biturbo
| 1 | Ignition coils |
| 2 | Double screw, M6 x 45-M6 x 12 > Tightening - torque 9 Nm (6.5 ftlb.) |
| 3 | Screw, M6 x 16 > Tightening - torque 9 Nm (6.5 ftlb.) |
| 4 | Camshaft hall sender |
| 3 | Nut |
| 5 | Crankshaft pulse sender |
| 6 | Screw, M6 x 16 > Initial - tightening 3 Nm (2 ftlb.) > Torque angle 90 Grad |
| 7 | Knock sensor |
| 8 | Screw, M8 x 30 > Tightening - torque 30 Nm (22 ftlb.) Not - shown Spark plug (old and new) > Tightening - torque 23 Nm (17 ftlb.) Not - shown Nut securing ground line to double screw for ignition coil > Tightening - torque 9 Nm (6.5 ftlb.) |
