Group 27 - Starter, Power Supply: Starter

WARNING: This page is about a different variant/trim than selected.

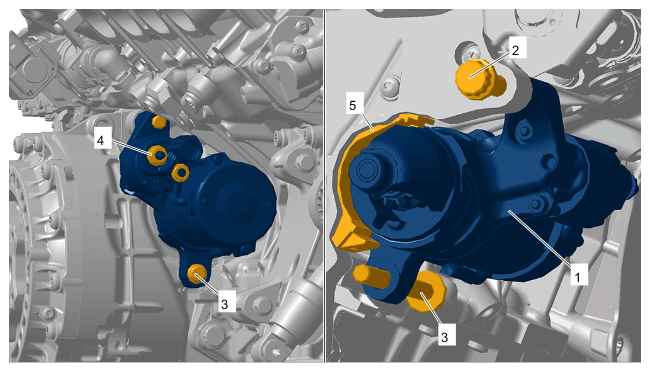

Fig 1: Starter Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Starter

1	Starter
2	Screw, M12 x 100/replace > Initial - tightening 30 Nm (22 ftlb.) > Final tightening + 105°
3	Screw, M10 x 50 > Tightening - torque 65 Nm (48 ftlb.)
4	M8 nut > Tightening - torque 23 Nm (17 ftlb.)
5	Cover section/see appropriate service information
