Outer Heat Shield

WARNING: This page is about a different variant/trim than selected.

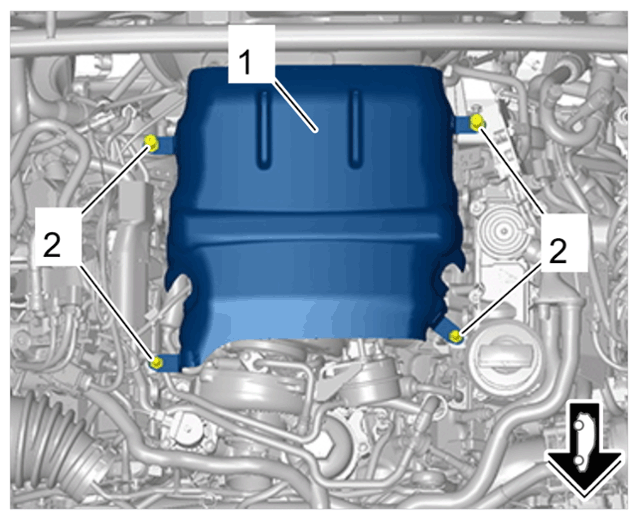

Fig 1: Outer Heat Shield Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield

1	Heat shield
2	Ball pin > Tightening - torque 5 Nm (3.5 ftlb.)
