Heat Shields
WARNING: This page is about a different variant/trim than selected.

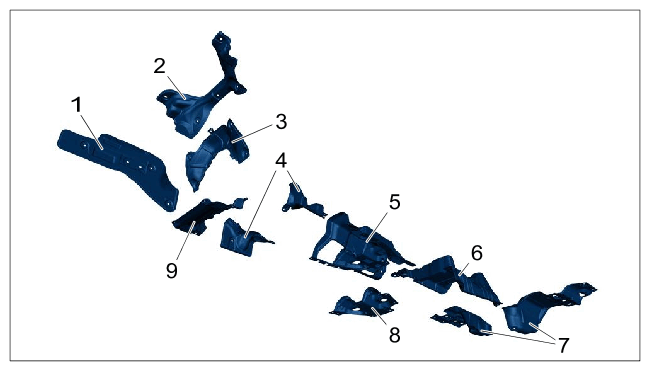

Component information - heat shields
| 1 | Heat shield on right longitudinal member (R4) |
| 2 | Heat shield on firewall upper section |
| 3 | Heat shield on firewall lower section (V6 turbo) |
| 4 | Preliminary work for heat shields for tunnel at the left and right (V6 turbo) |
| 5 | Heat shield on tunnel, centre |
| 6 | Heat shield centre |
| 7 | Heat shields for rear silencer |
| 8 | Heat shield on cardan shaft centre bearing |
| 9 | Heat shield on lower heat shield (V6 turbo) |
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Heat shields nuts | Spring nuts | Tightening torque | 2 Nm (1.5 ftlb.) |
