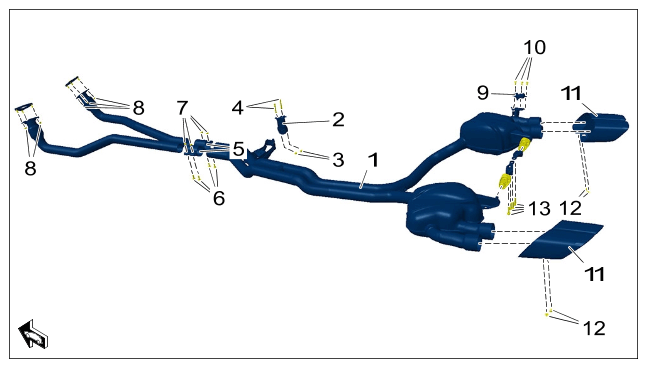

Exhaust system - V6 monoturbo
| 1 | Exhaust system |
| 2 | Exhaust system holder |
| 3 | > Tightening - torque 20 Nm (15 ftlb.) |
| 4 | Studs on exhaust system holder |
| 5 | Clamps/Always replace |
| 6 | Screws on clamps |
| 7 | Nuts on clamps > Tightening - torque 30 Nm (22 ftlb.) |
| 8 | > Tightening - torque 23 Nm (17 ftlb.) |
| 9 | Exhaust flap actuator |
| 10 | > Tightening - torque 5 Nm (3.5 ftlb.) |
| 11 | Tailpipe covers |
| 12 | > Tightening - torque 8 Nm (6 ftlb.) |
| 13 | > Tightening - torque 20 Nm (15 ftlb.) |
