Turbocharger (Monoturbo)

WARNING: This page is about a different variant/trim than selected.

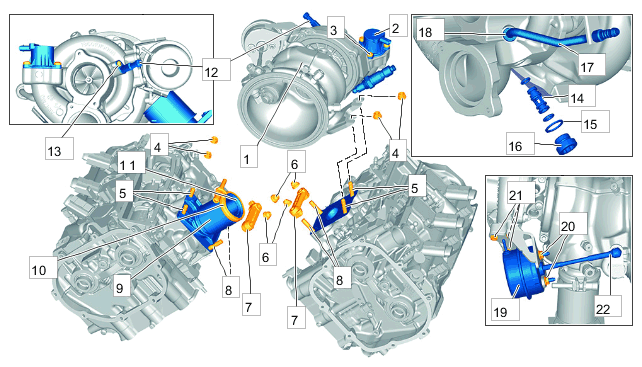

Fig 1: Turbocharger Component Location With Torque Specification (Monoturbo)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Turbocharger (monoturbo)

1	Turbocharger
2	Shut-off valve O-ring/replace
3	Screws, M6 x 18 > Tightening - torque 9 Nm (6.5 ftlb.)
4	M8 nuts for stud/replace > Tightening - torque 25 Nm (19 ftlb.)
5	Stud > Tightening - torque 15 Nm (11 ftlb.)
6	M8 nuts for fit-stud/replace > Tightening - torque 30 Nm (22 ftlb.)
7	Clamp
8	Fit-stud > Tightening - torque 15 Nm (11 ftlb.)
9	Decoupling element
10V-band clamp/	replace V-band clamp for turbocharger > 20 (15 ftlb.) 11 Nm
Seal/	replace 12
Speed sender	13
Screw, M4 x 14 /	Screw for turbocharger speed sender > Tightening - torque 5 Nm (3.5 ftlb.)
14	Nozzle
15	Sealing ring, A16 x 20/replace
16	Screw plug, M16 x 1 x 7.5 > Tightening - torque 25 Nm (19 ftlb.)
17	Active carbon filter line
18	O-ring, 7.65 x 1.76/replace
19	Vacuum unit
19.1	> Setpoint value 8 mm +/-1 mm
19.2	> Setpoint value 3 mm +/-1 mm
20	M6 nuts > Tightening - torque 8 Nm (6 ftlb.)
21	Screws
22	Safety clip
Not shown	Shut-off valve
Not shown	Screws, M6 x 18 > Tightening - torque 9 Nm (6.5 ftlb.)
Not shown	Screw, M6 x 14 > Tightening - torque 9 Nm (6.5 ftlb.)

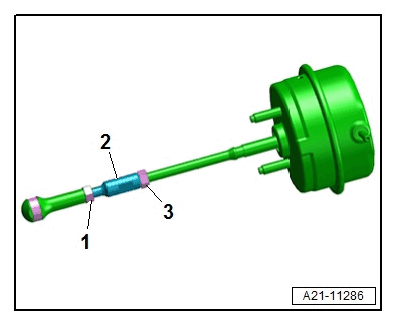

Fig 2: Control Box Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Control box

1+3	Lock nut for control rod > Tightening - torque 8 Nm (6 ftlb.)

Coolant lines and oil lines on turbocharger

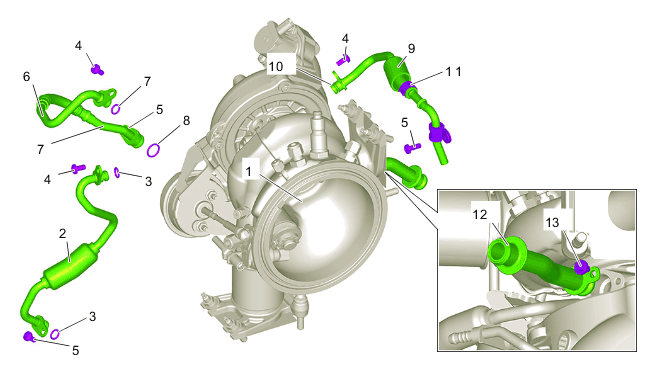

Fig 3: Coolant Lines And Oil Lines On Turbocharger Component Location With Torque Specification - V6 Monoturbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant lines and oil lines on turbocharger - V6 monoturbo

1	Turbocharger
2	Coolant return line
3	O - ring/replace
4	Screw, M6 x 12 > Tightening - torque 9 Nm (6.5 ftlb.)
5	Screw, M6 x 16 > Tightening - torque 9 Nm (6.5 ftlb.)
6	Oil supply line
7	O - ring/replace
8	O - ring/replace
9	Coolant supply line
10	O - ring/replace
11	Holder
12	Oil return line/must always be replaced following removal
13	Pin/must always be replaced following removal

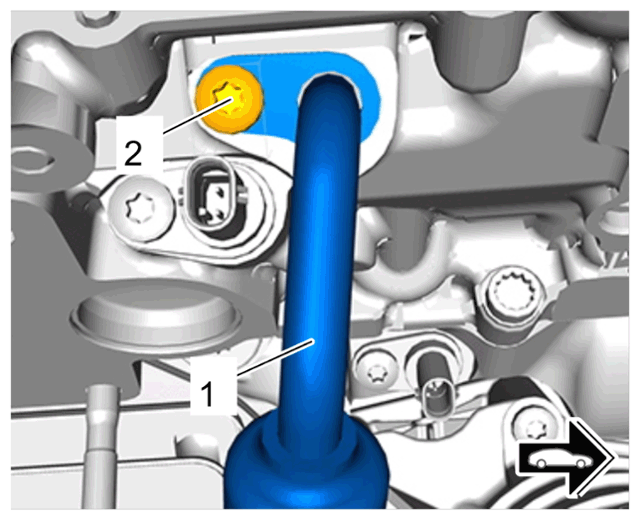

Fig 4: Coolant Line On Left Cylinder Bank Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant line on left cylinder bank

1	Coolant return line for turbocharger to left cylinder head
2	Screw > Tightening - torque 9 Nm (6.5 ftlb.)
