Supply Line - Section In Engine Compartment
WARNING: This page is about a different variant/trim than selected.

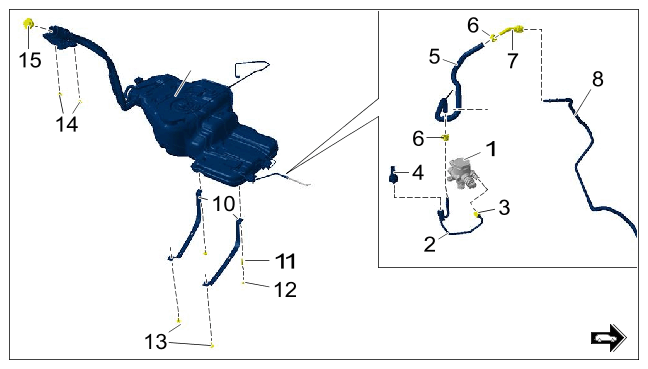

Overview of fuel system
| 1 | High-pressure pump |
| 2 | Supply line - section at high-pressure pump |
| 3 | Union nut |
| 4 | Fuel pressure sensor |
| 5 | Supply line - engine compartment section |
| 6 | Spring band clamp |
| 7 | Plug-in coupling |
| 8 | Supply line - underbody section |
| 9 | Fuel tank |
| 10 | Retaining straps for fuel tank |
| 11 | Stud |
| 12 | Nut |
| 13 | Screws for fuel tank retaining straps |
| 14 | Screws for filler neck |
| 15 | Filler neck cap |

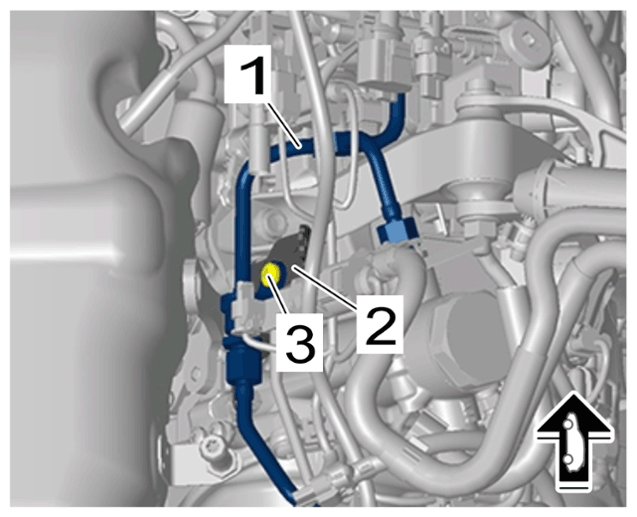

Fig 2: Fuel Line To Bracket Component Location With Torque Specification (Supply Line - Section In Engine Compartment)
Fuel line to bracket
| 1 | Fuel line |
| 2 | Fuel line bracket |
| 3 | Screw > Tightening - torque 9 Nm (6.5 ftlb.) |
