Removing Oil Separator

NOTIFICATION

Dirt and contamination

• Risk of damage to units or components
  1. → Protect components from dirt and contamination.
  2. → Clean or replace dirty components.

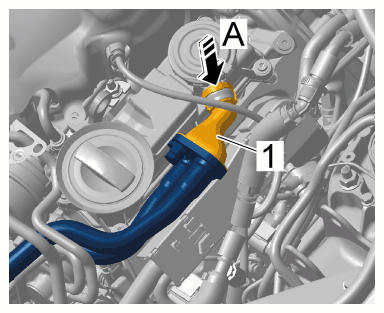

1. Press release button on both sides -arrow A-  and detach adapter -1-  from the oil separator.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Adapter for oil separator

   Information

   Screws on the oil separator are permanently connected. If screws are damaged, press the screws out of the oil separator and replace them.

2. Remove oil separator -1-  .

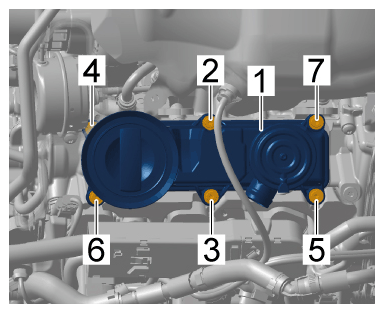

   Fig 1: Oil Separator Screws Loosening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oil separator

   1. 2.1  Remove screws on oil separator in the sequence -7 to 2-  .
   2. 2.2  Remove oil separator -1-  .
