Removing Torque Support
WARNING: This page is about a different variant/trim than selected.

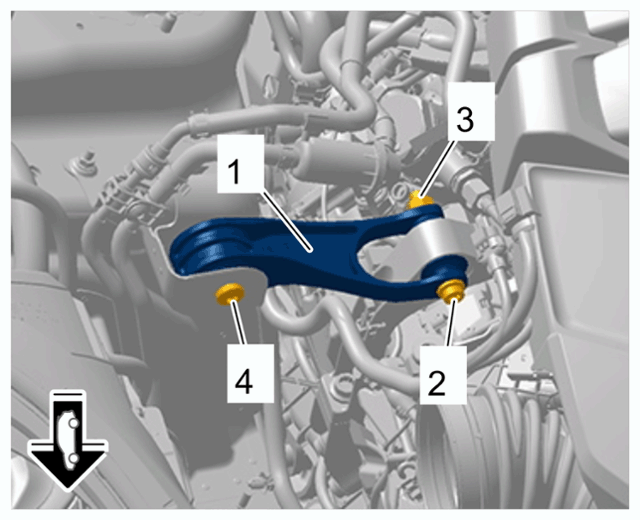

- Remove torque support -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Torque support
- 1.1
Unscrew screw -2-
and counter at nut -3-
.
- 1.2
Remove screw -4-
.
- 1.3
Remove torque support -1-
.
