Installing Torque Support
WARNING: This page is about a different variant/trim than selected.

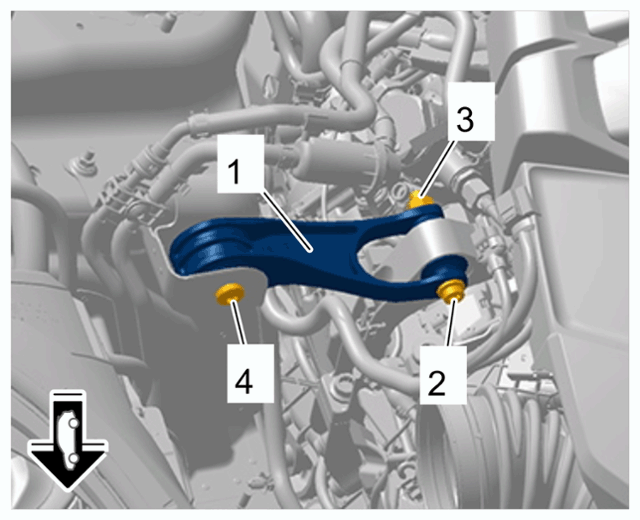

- Install torque support -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Torque support
- 1.1
Position torque support -1-
. Fit screw -2-
with nut -3-
, as well as screw -4-
.
- 1.2
Tighten screw -2-
.
- Initial tightening 15 Nm (11 ftlb.)
- Final tightening 180°
- 1.3
Tighten screw -4-
.
- Initial tightening 15 Nm (11 ftlb.)
- Final tightening 180°
