Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance1 | Tolerance2 |
|---|---|---|---|---|---|
| Fastening screws | Retainer plate to front-axle carrier | Tightening torque | 30 Nm (22 ftlb.) | ||
| Fastening screw | Step 1, engine mount | Initial tightening | 90 Nm (67 ftlb.) | ||
| Fastening screw | Step 2, engine mount | Final tightening | + 90° | ||
| Fastening screws | Engine mount to front-axle carrier | Tightening torque | 55 Nm (41 ftlb.) | ||
| Front level sensor to front-axle carrier | M8 thread | Tightening torque | 20 Nm (15 ftlb.) | ||

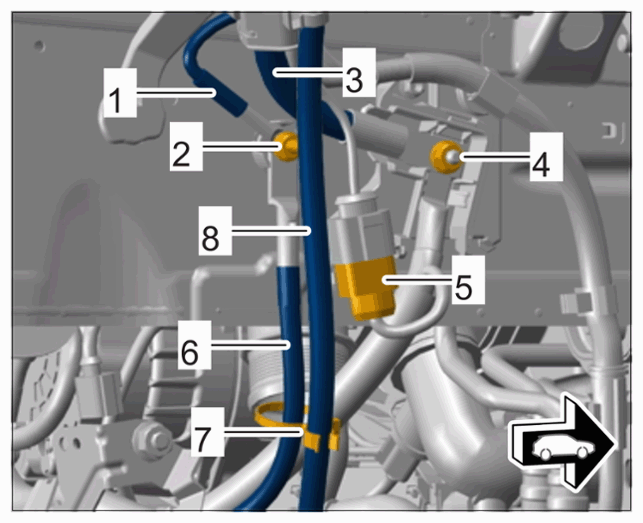

| Fastening nut for ground line in front right wheel housing | Item 2 | Tightening torque | 9 Nm (6.5 ftlb.) | ||
|
Ground line in front right wheel housing |
|||||
| Fastening nut for ground line in front right wheel housing | Item 4 | Tightening torque | 9 Nm (6.5 ftlb.) | ||
|
Ground line in front right wheel housing |
