Removing Front Crankcase Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

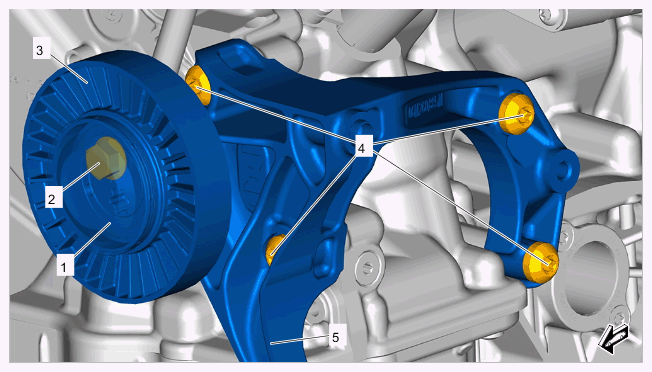

Air-conditioning compressor bracket

1. 1.1  Remove tensioning roller -3-  .
   1. 1.1.1  Unscrew screw on tensioning roller -2-  .
   2. 1.1.2  Remove tensioning roller -3-  .
2. 1.2  Unscrew screws on air-conditioning compressor bracket -4-  .
   1. 1.2.1  Replace screws.
3. 1.3  Remove air-conditioning compressor bracket -5-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

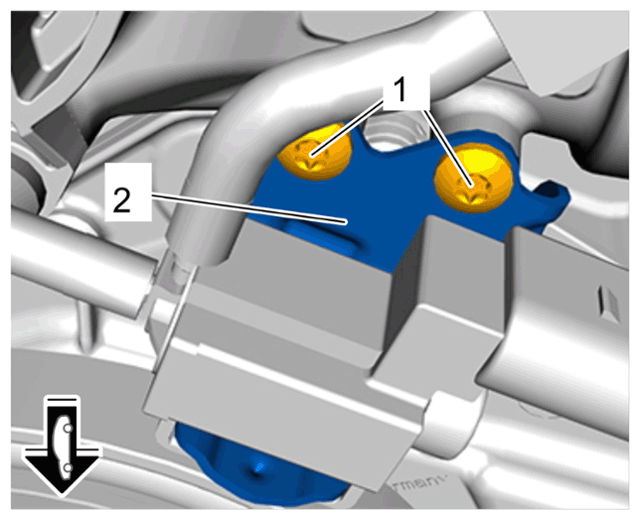

Change-over valve holder

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

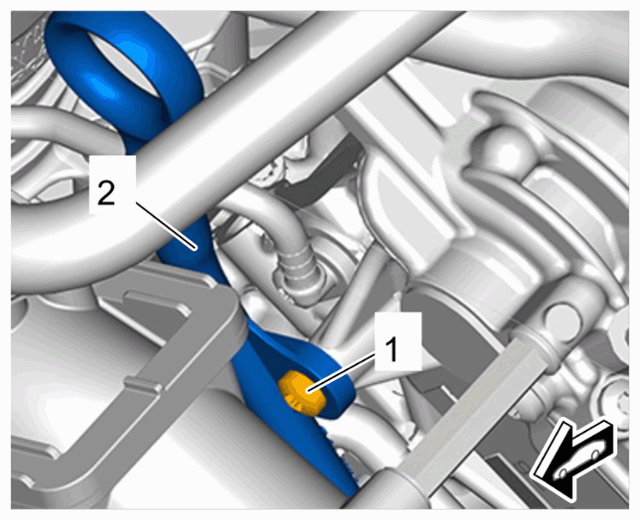

Guide tube for oil dipstick

1. 3.1  Unscrew screw on guide tube for oil dipstick -1-  .
2. 3.2  Pull guide tube for oil dipstick -2-  out of the crankcase cover.

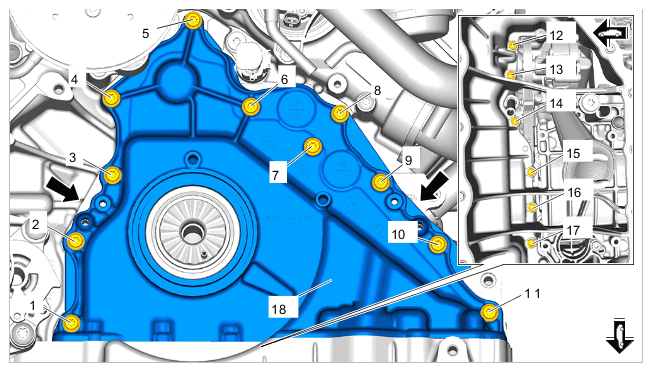

Fig 1: Crankcase Cover Screws Loosening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Crankcase cover

1. 4.1  Unscrew screws on crankcase cover -1 to 17-  .
2. 4.2  Screw a screw for the crankcase cover -18-  into each of the threaded bores -Arrows-  by hand.
3. 4.3  Tighten screws carefully and uniformly in order to loosen the crankcase cover -18-  from the bonding.
4. 4.4  Remove crankcase cover -18-  and remove screws from the threaded bores -Arrows-  .
