Installing Front Crankcase Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

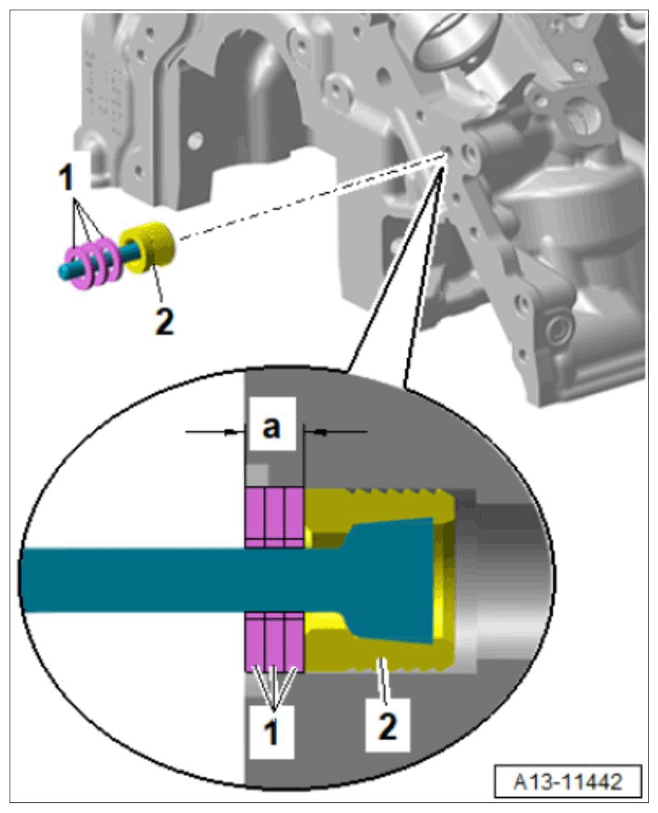

Installing stoppers in cylinder block

1. 2.1  Cut outer diameter of the three commercially available washers to slightly 7.7 mm.
2. 2.2  Insert stoppers -2-  and washers -1-  using > V.A.G 1765C - pop rivet nut pliers  . The correct installation depth dimension -a-  = 2.4 mm  is set over the washers.
3. 2.3  Remove washers.

Information

Do not use sharp-edged tools to clean the sealing faces.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

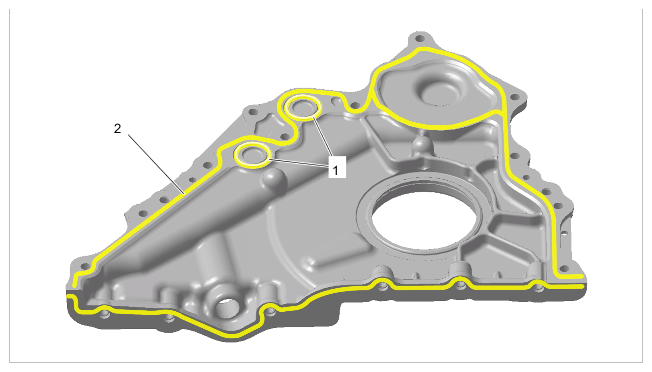

Inside of crankcase cover

1. 3.1  Remove crankshaft sealing ring.
   • Removing and installing crankshaft sealing ring
2. 3.2  Clean sealing faces with primer Loctite 7515.
3. 3.3  O-rings -1-  replace
4. 3.4  Apply liquid sealant Loctite 5970-BM -2-  on the crankcase cover.

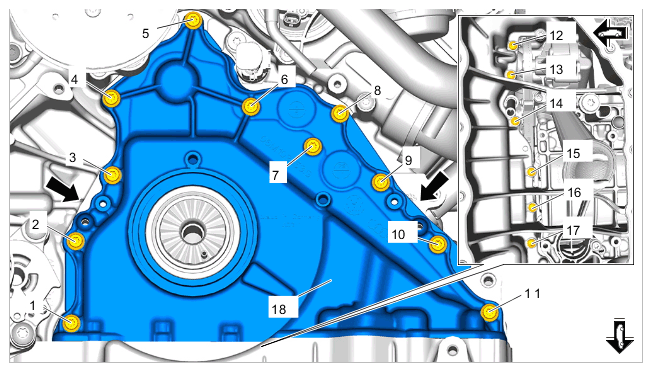

Fig 1: Crankcase Cover Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Crankcase cover

1. 4.1  Position front crankcase cover. -18-
2. 4.2  Fit screws on crankcase cover and tighten in the sequence. -1 to 17-
   • Initial tightening 3 Nm (2 ftlb.)

   Tighten screws on crankcase cover in the sequence. -1 to 11-

   • Final tightening + 90°

   Tighten screws securing crankcase cover to oil guide housing in the sequence. -12 to 17-

   • Final tightening 9 Nm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

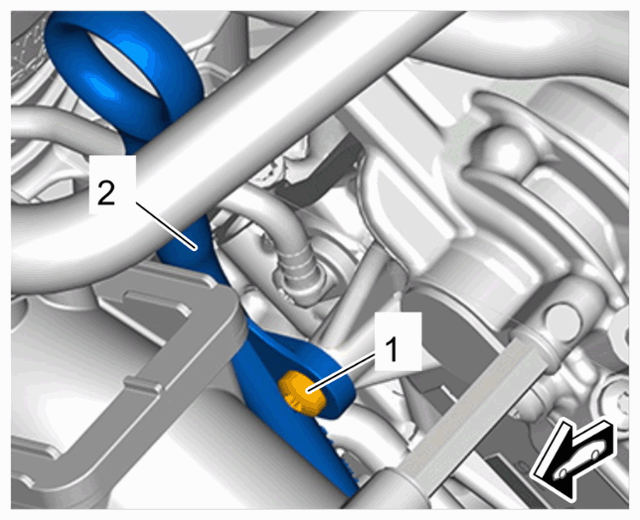

Guide tube for oil dipstick

1. 5.1  Fit guide tube for oil dipstick -2-  into the crankcase cover.
2. 5.2  Fit and tighten screw on guide tube for oil dipstick. -1-
   • Tightening torque 9 Nm (6.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

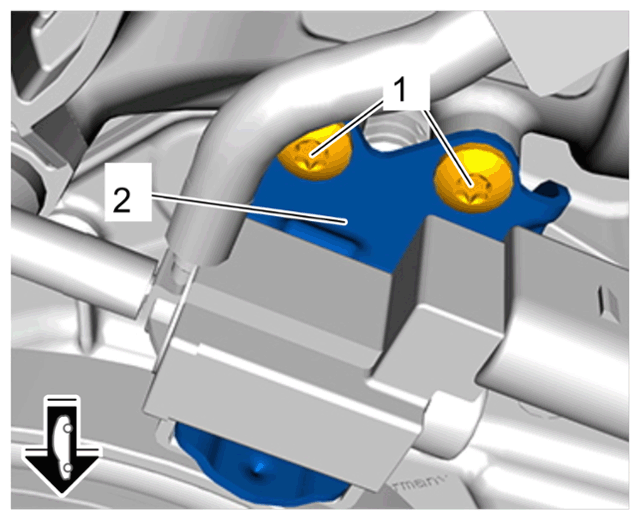

Change-over valve holder

1. 6.1  Fit and tighten screws on holder. -1-
   • Tightening torque 9 Nm (6.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

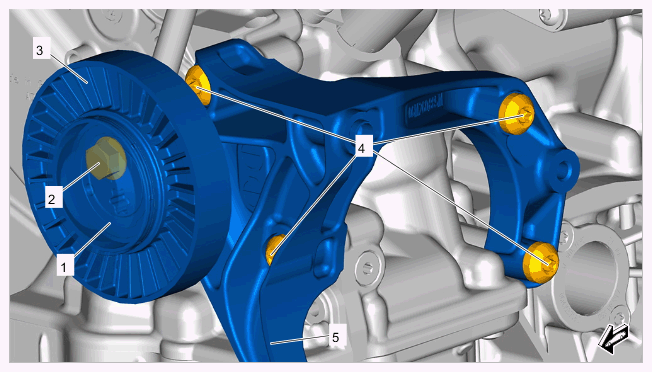

Air-conditioning compressor bracket

1. 7.1  Replace screws on air-conditioning compressor bracket.
2. 7.2  Position air-conditioning compressor bracket. -5-
3. 7.3  Fit and tighten new screws securing air-conditioning compressor bracket. -4-
   • Initial tightening 8 Nm (6 ftlb.)
4. 7.4  Install tensioning roller. -3-
   1. 7.4.1  Position tensioning roller. -3-
   2. 7.4.2  Fit screw on tensioning roller -2-  , but do not tighten yet.
