Removing Oil Spray Jet

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

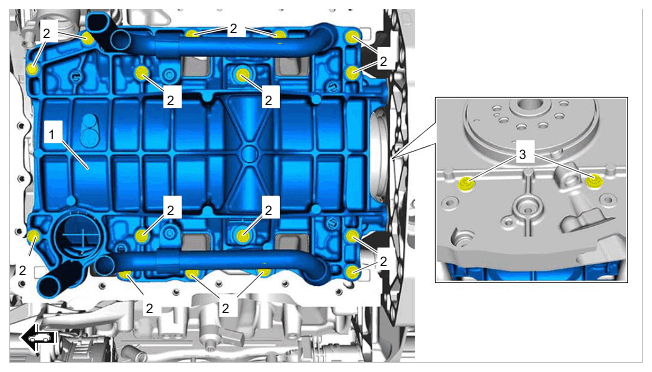

Oil windage tray

1. 1.1  Unscrew screws for oil windage tray -2 and 3-  .
   1. 1.1.1  Replace screws.
2. 1.2  Remove oil windage tray -1-  from cylinder block.

Information

The crankshaft must be turned only in direction of rotation of the engine.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

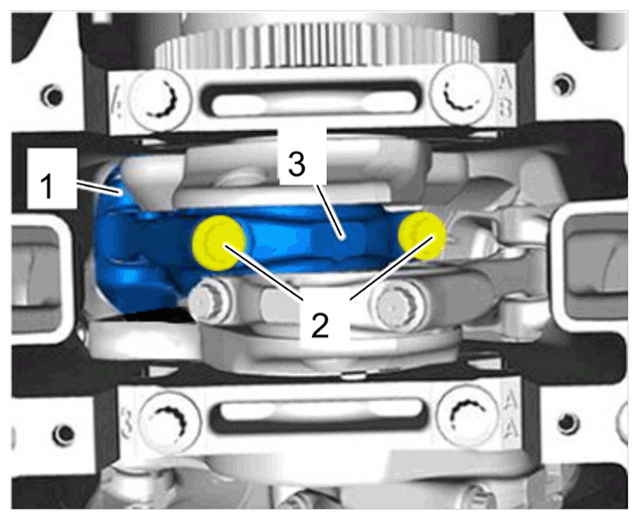

Piston and connecting rod on crankshaft

1. 2.1  Turn the crankshaft until the relevant connecting rod bearing is accessible.
2. 2.2  Unscrew screws on connecting-rod bearing cap -2-  .
   1. 2.2.1  Replace screws.
3. 2.3  Remove connecting-rod bearing cap -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

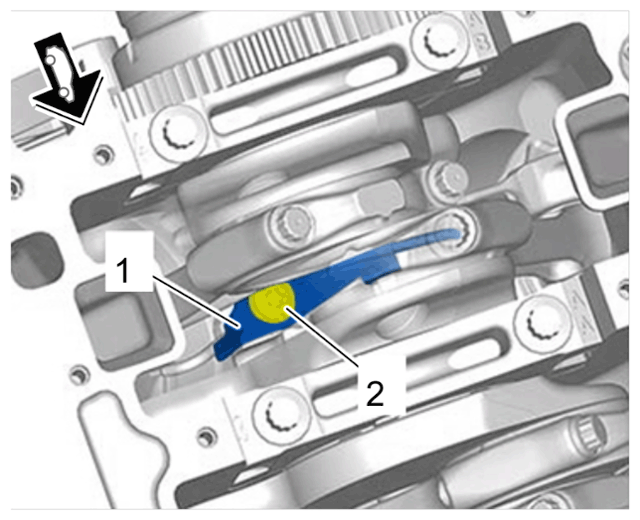

Oil spray jet

1. 3.1  Unscrew screw -2-  .
   1. 3.1.1  Replace screw.
2. 3.2  Remove oil spray jet -1-  .
