Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Fastening nut securing ground line to bracket for engine mount	Item 4	Tightening torque	20 Nm (15 ftlb.)

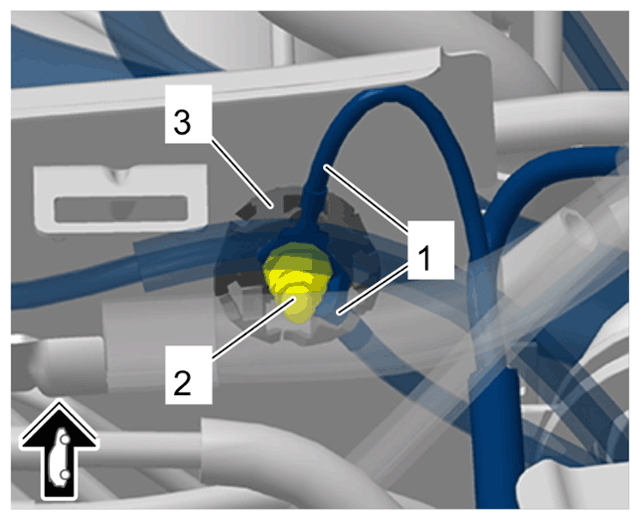

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground line on bracket for engine mount
Fastening nut for ground lines next to fuse box	Item 2	Tightening torque	9 Nm (6.5 ftlb.)

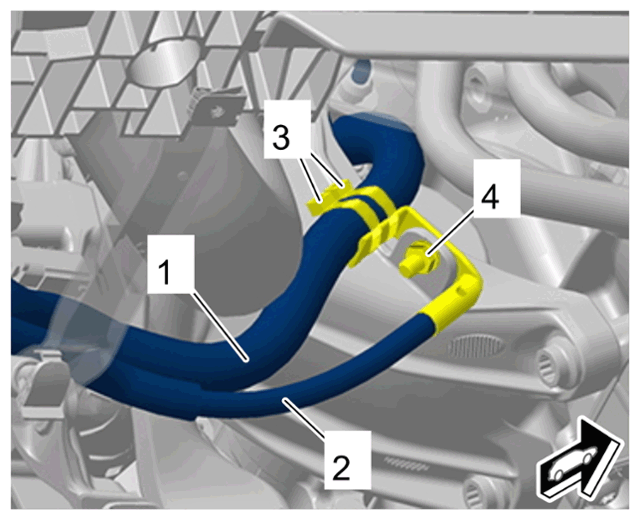

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground lines next to fuse box
Fastening nut for ground line in front right wheel housing	Item 2	Tightening torque	9 Nm (6.5 ftlb.)

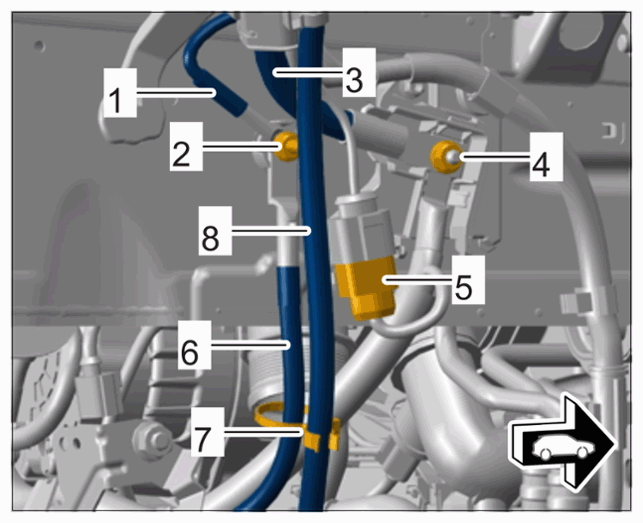

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground line in front right wheel housing
Fastening nut for ground line in front right wheel housing	Item 4	Tightening torque	9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground line in front right wheel housing
Fastening nut for electric wire harness in right wheel housing	Item 6	Tightening torque	9 Nm (6.5 ftlb.)

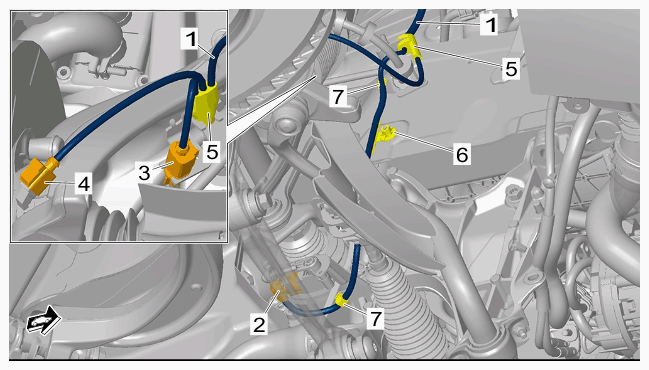

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric wire harness in wheel housing
Jump-start terminal B+ to jump-start point	Item 2	Tightening torque	20 Nm (15 ftlb.)

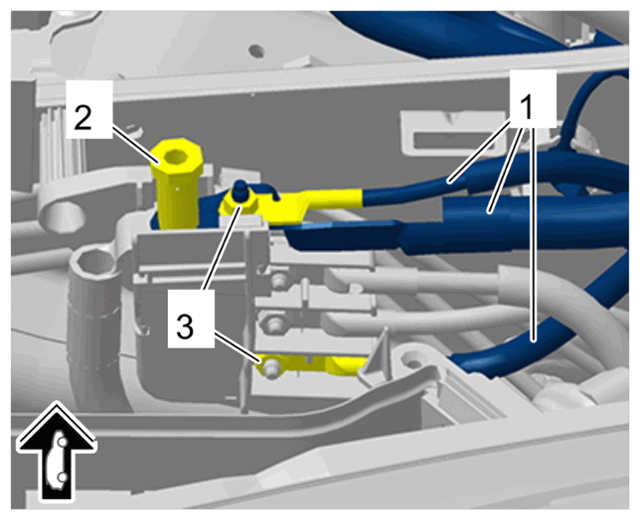

Courtesy of PORSCHE CARS NORTH AMERICA, INC. B+ lines next to fuse box
M6 fastening nuts securing B+ lines to jump-start point	Item 3	Tightening torque	7.5 Nm (5.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. B+ lines next to fuse box
M8 fastening nuts securing B+ lines to jump-start point	Item 3	Tightening torque	16 Nm (12 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. B+ lines next to fuse box
Fastening nut securing positive cable to fuse box in cowl panel	Item 3	Tightening torque	9 Nm (6.5 ftlb.)

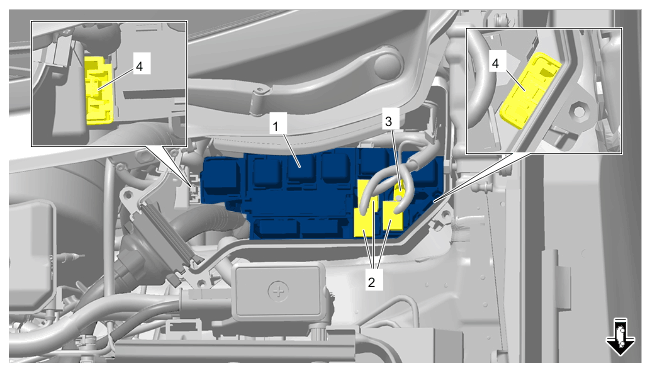

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fuse box
Fastening screws securing cover to fuse box in cowl panel	Item 2	Tightening torque	3 Nm (2 ftlb.)

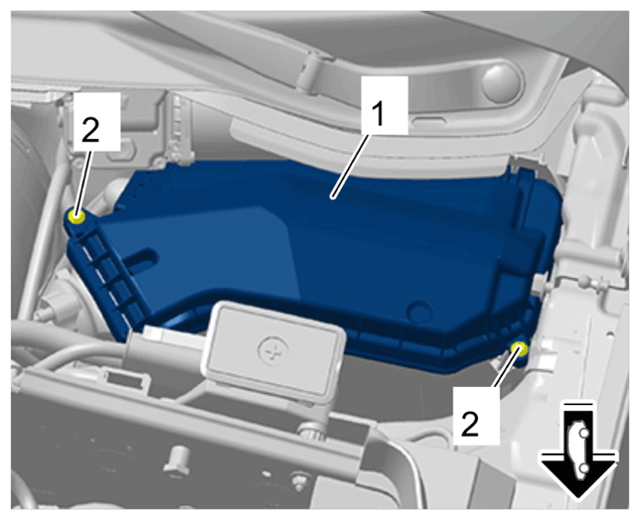

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fuse box cover
Screw on DME holder		Tightening torque	6 Nm (4.5 ftlb.)
Nut on DME holder		Tightening torque	6 Nm (4.5 ftlb.)
Front axle carrier to body 2nd stage	Items 16 + 17: Screws M12 and square nuts M12/replace	Final tightening	+ 90°
Front axle carrier to body 1st stage	Item 19: Screw M12/replace	Initial tightening	115 Nm (84.8 ftlb.)
Screw securing strut to chassis subframe	Item 2: M6 x 35-S11	Tightening torque	3.6 Nm (2.7 ftlb.)

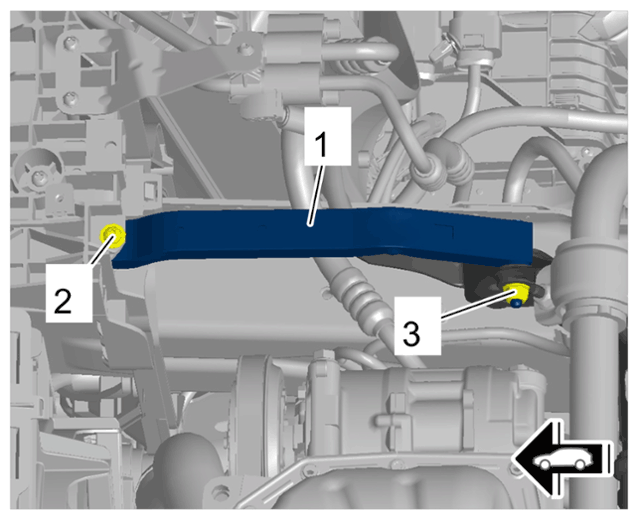

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Strut
Nut on chassis subframe strut	Item 3: M8 nut	Tightening torque	23 Nm (17 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Strut
Upper trailing arm to wheel bearing housing	M10 thread	Tightening torque	45 Nm (33 ftlb.)
Damper fork to damper	M12 thread/always use new screws or bolts and nuts following removal	Final tightening	90 Nm (66 ftlb.)
Damper fork to damper	M12 thread/always use new screws or bolts and nuts following removal	Final tightening	+ 90°
Screw	Screw on transmission support	Tightening torque	70 Nm (52 ftlb.)
Intermediate steering shaft to steering gear (universal joint)	M8 x 30 thread/always use new screws or bolts following removal	Initial tightening	20 Nm (15 ftlb.)
Intermediate steering shaft to steering gear (universal joint)	M8 x 30 thread/always use new screws or bolts following removal	Final tightening	+ 90°
