Remove Engine
- Risk of squashing or crushing
- → Secure components to prevent them from falling down.
- Danger of fire or explosion
- → Avoid contact with hot parts or sources of ignition.
- → Use suction to remove ignitable vapours.
- → Attach warning sign in a clearly visible position.
- → Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
- → Secure collection containers/vessels to prevent them from tipping over.
- Danger of scalding
- → Allow the fuel to cool down before opening line connections.
- → Wear protective gloves.
- → Wear protective goggles.
- Escaping fuel in the engine compartment
- Fire in the engine compartment
- → Do not loosen hoses using sharp-edged tools.
- → Replace damaged fuel lines.
- Danger of chemical burns
- → Wear personal protective gear.
- → Ensure that there is good ventilation.
- → Avoid contact with caustic fluid.
- → If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.
- Risk of burns
- → Let hot components cool down.
- → Wear personal protective gear.
Information
- Open connections and lines must be closed off using suitable stoppers or caps.
Information
The pictures shown in this document may differ from the original.

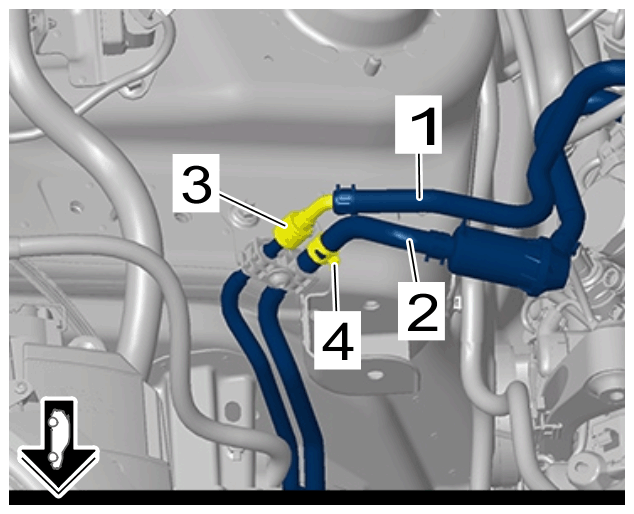

- Disconnect supply line -1- and active carbon filter line -2- .
Connection point in engine compartment - supply line
- 1.1
Disconnect supply line -1-
at connection point in engine compartment.
- 1.1.1 Release and disconnect quick connector -3- for engine compartment section at the underbody section.
- 1.1.2 Soak up escaping fuel using suitable aids and close off line connections using suitable stoppers.
- 1.2
Disconnect active carbon filter line -2-
.
- 1.2.1 Loosen spring band clamp -4- using > VAS 6890 - spring band clamps pliers .
- 1.2.2 Disconnect active carbon filter line -2- and close off line connections using suitable stoppers.
- Disconnect coolant hoses -1 and 2-
.

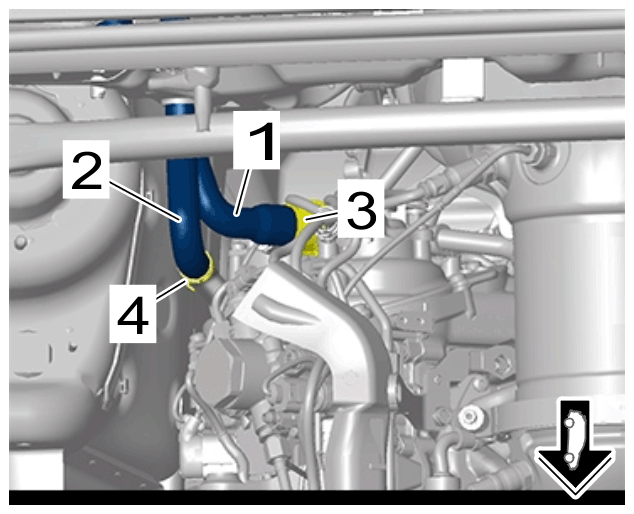

Coolant hoses
- 2.1 Release and disconnect quick connector -3- for the coolant hose -1- .
- 2.2 Loosen spring band clamp -4- using > VAS 6890 - spring band clamps pliers .
- 2.3 Pull off coolant hose -2- .
- 2.4 Catch escaping coolant and close off line connections using suitable stoppers.
- Disconnect coolant hose -1-
at the top of the radiator -3-
.

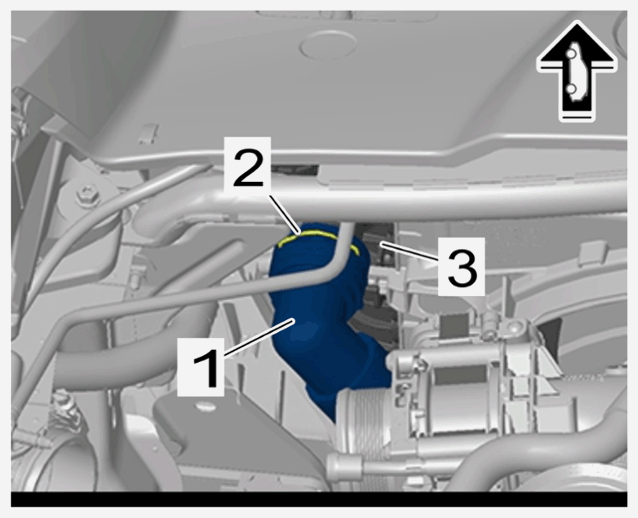

Coolant hose on radiator, top
- 3.1 Release safety clip -2- .
- 3.2 Disconnect coolant hose -1- from the radiator -3- .
- 3.3 Catch escaping coolant and close off line connections using suitable stoppers.

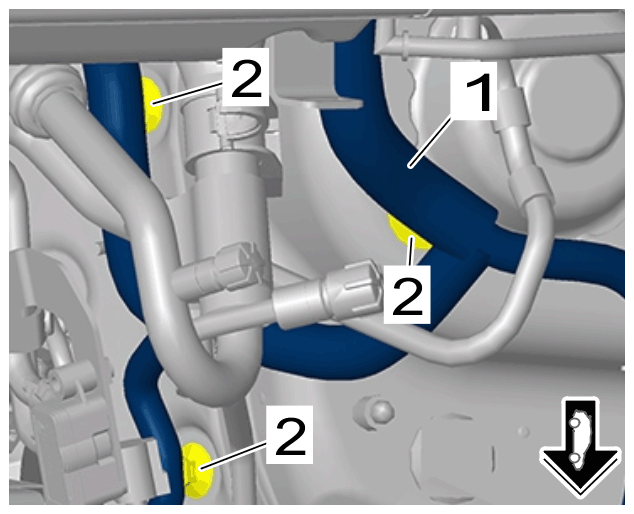

- Disconnect coolant vent line -1-
.
Coolant vent line
- 4.1 Release and disconnect quick connector -2- .
- 4.2 Catch escaping coolant and close off line connections using suitable stoppers.
- Remove DME control unit holder -1-
.

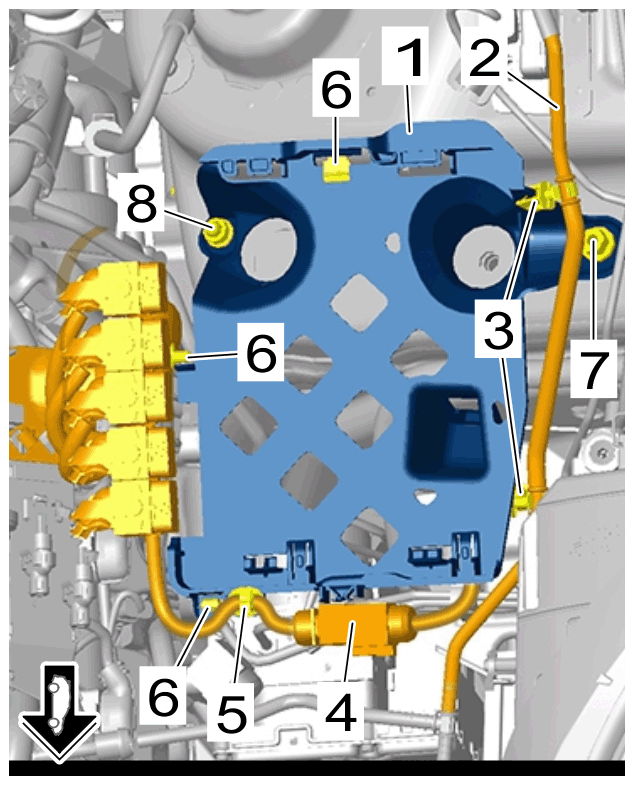

DME control unit holder
- 5.1 Unclip coolant line -2- from clips -3- .
- 5.2 Disengage cable plug -4- and unclip clip -5- on the electric line.
- 5.3 Unclip clips on wiring harness
- 5.4 Unscrew screw on DME control unit holder -7- .
- 5.5 Unscrew nut on DME control unit holder -8- .
- 5.6 Disengage and remove DME control unit holder -1- . 6 Remove cover on fuse box -1- .

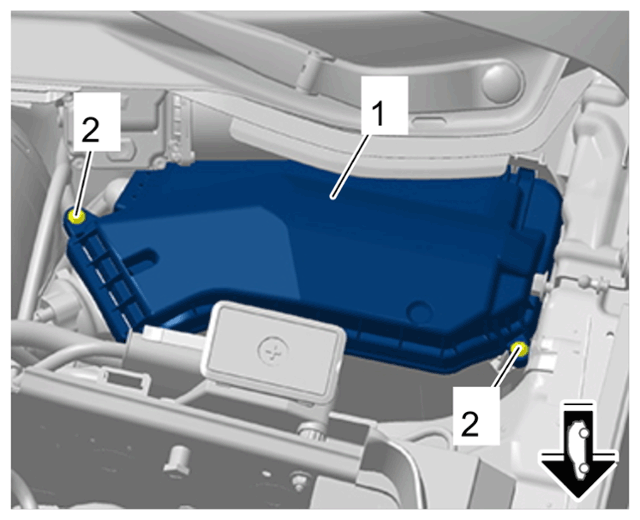

Cover for fuse box
- 6.1 Unscrew screws -2- and remove cover on fuse box -1- .

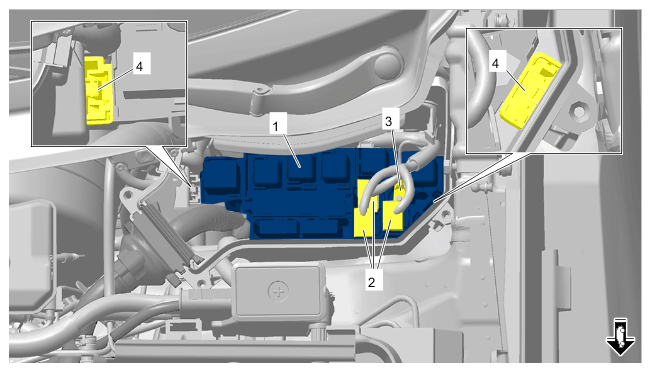

- Disconnect relay carrier -1-
from fuse box.
Relay carrier
- 7.1 Release and disconnect cable plug -2- .
- 7.2 Screw off nut -3- .
- 7.3 Press locking lugs -4- and remove relay carrier -1- by pulling it upwards.

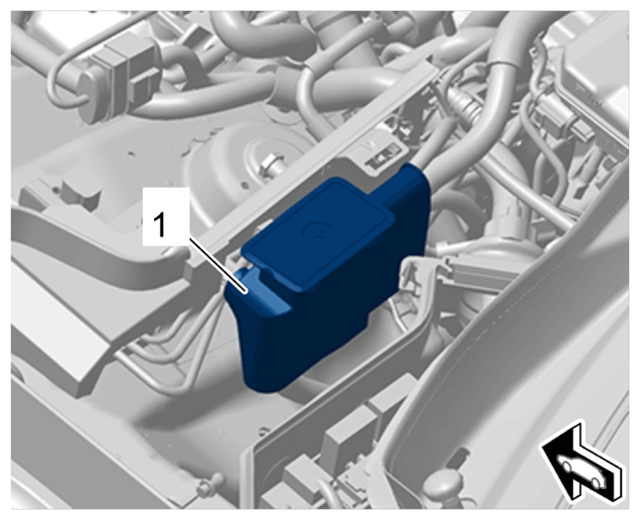

- Remove B+ cover -1-
.
B+ cover
- Disconnect B+ lines -1-
next to the fuse box.

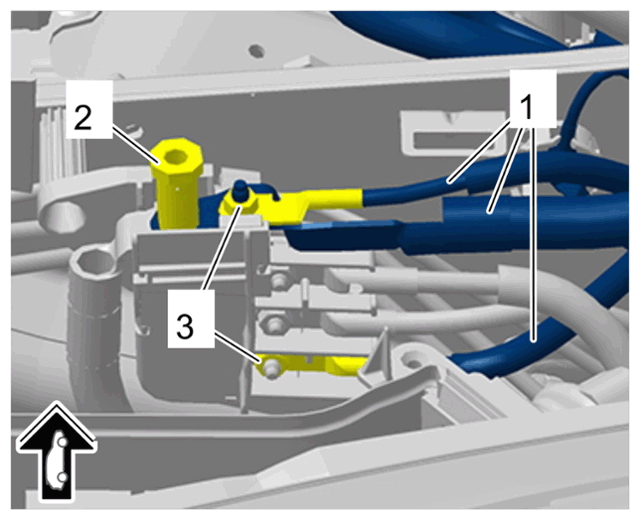

B+ lines next to fuse box
- 9.1 Unscrew positive terminal -2- .
- 9.2 Unscrew nuts -3- .
- 9.3 Disconnect B+ lines -1- from the distributor.
- Disconnect ground lines -1-
next to the fuse box.
- 10.1 Screw off nut -2- .
- 10.2 Unclip ground lines -1- from bracket -3- .
Ground lines next to fuse box
- Disconnect wiring harness on right engine mount -1-
.
Wiring harness on right engine mount
- 11.1 Unclip clips -2 and 3- .
- 11.2 Release and disconnect cable plug -4 and 5- .
- 11.3 Move wiring harness on right engine mount -1- aside.

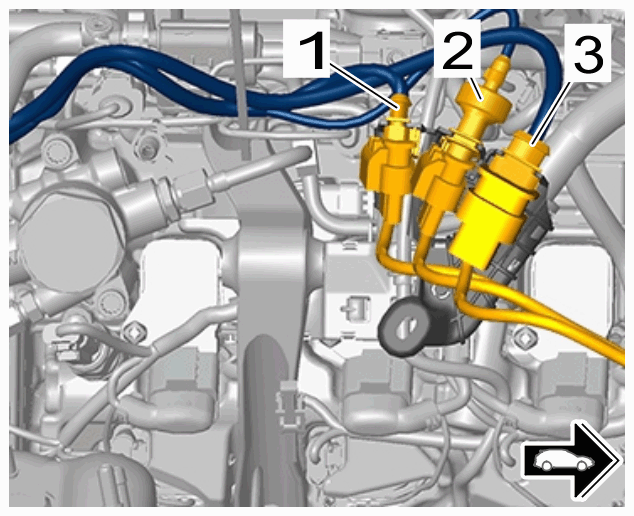

- Disconnect cable plug -1 to 3-
.
Cable plugs
- 12.1 Disengage cable plug -1 to 3- from the holder and release and disconnect it.
- 12.2 Unclip clips on the electric lines.
- Disconnect wiring harness in plenum panel -1-
.
Wiring harness in plenum panel
- 13.1 Unclip coolant line -2- from clip -5- .
- 13.2 Unclip clips -3- .
- 13.3 Release and disconnect cable plug -4- .
- 13.4 Move wiring harness in plenum panel -1- aside.

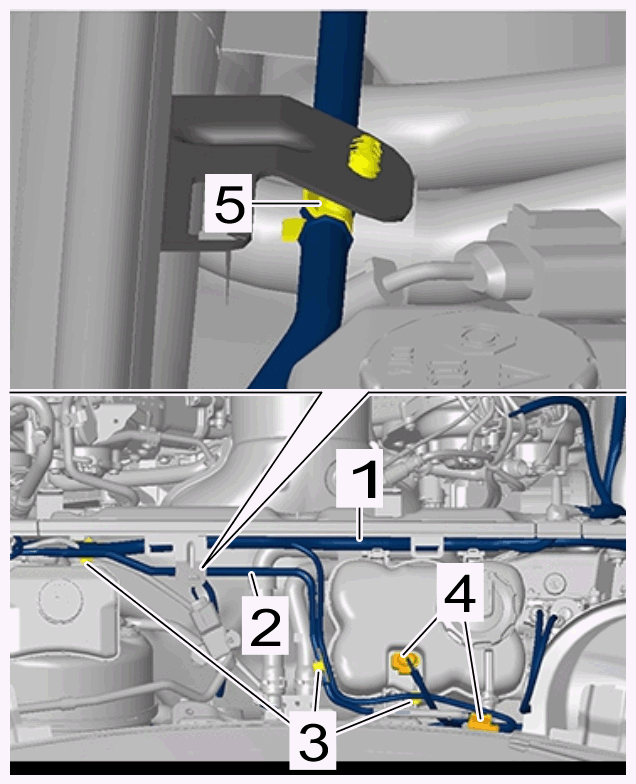

- Disconnect wiring harness -1-
on left longitudinal member.
Wiring harness on left longitudinal member
- 14.1 Disengage cable plug -2- from the holder and release and disconnect it.
- 14.2 Unclip clips on wiring harness -3- .
- 14.3 Move wiring harness -1- aside.
- Disconnect engine wire harness -1-
from the body.
Mounting for engine wire harness on body
- 15.1 Open line bracket -2- and unclip clips -3- .
- 15.2 Carefully place all sections of the disconnected engine wire harness -1- including the relay carrier down on the engine.
- Disconnect wiring harness -1-
on left longitudinal member.
Wiring harness on left longitudinal member
- 16.1 Unclip clips -2- .
- 16.2 Release and disconnect cable plug on pressure sensor -3- .
- 16.3 Release and disconnect cable plug on air-conditioning compressor -4- .
- 16.4 Release and disconnect cable plug on left engine mount -5- .
- 16.5 Move wiring harness -1- aside.

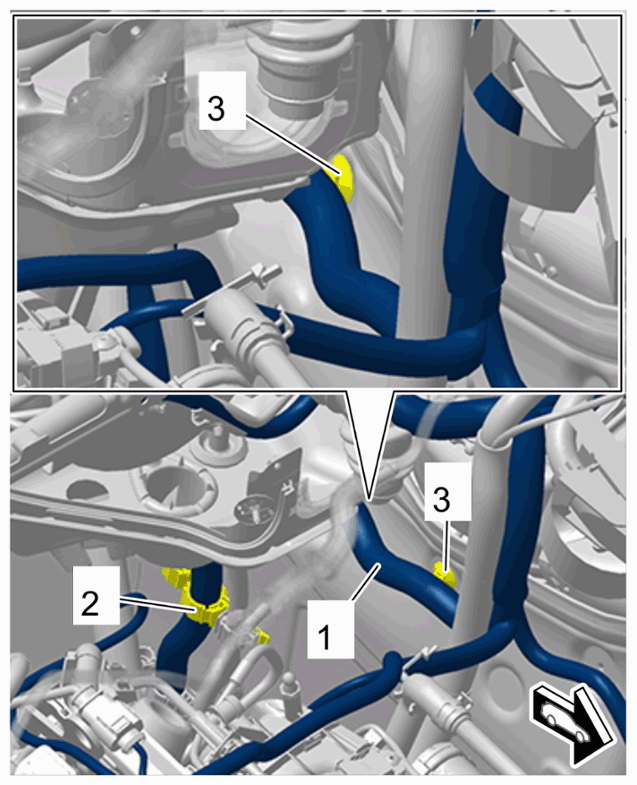

- Disconnect wiring harness on left dome -1-
.
Wiring harness on left dome
- 17.1 Unclip clips -2- .
- 17.2 Move wirinn harness -1- aside.

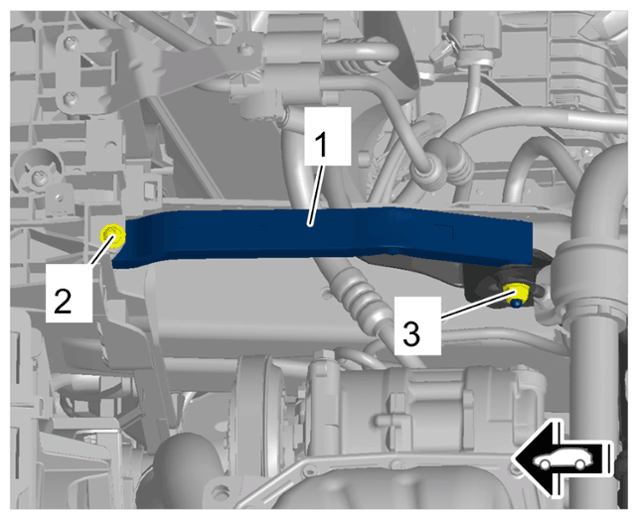

- Remove struts -1-
.

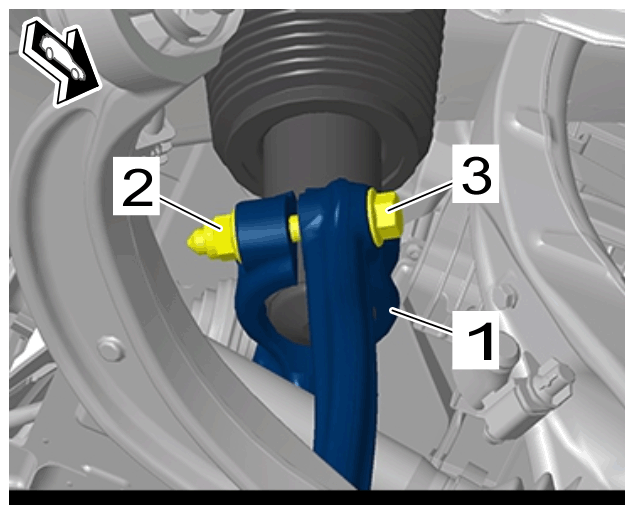

Strut
- 18.1 Unscrew screw for strut -2- .
- 18.2 Unscrew nut on strut -3- .
- 18.3 Guide threaded bolt of strut -1- out of the front-axle carrier and remove strut -1- .
- Open locking lug -1-
with a screwdriver, open housing cover -2-
on the right longitudinal member and remove it.
Housing cover

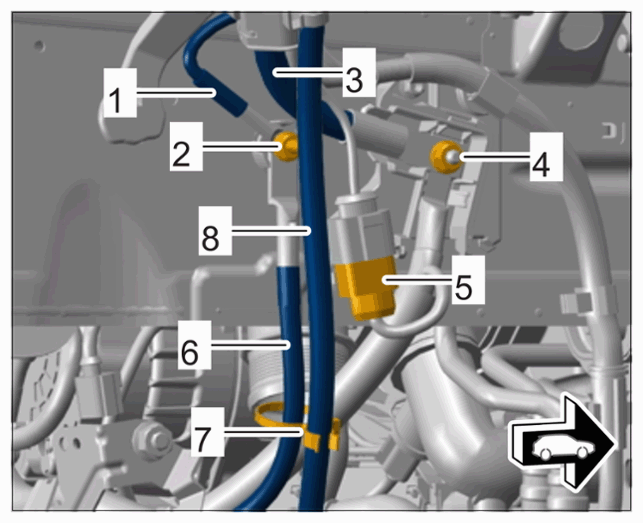

- Disconnect electric lines on the right longitudinal member.
Electric lines on right longitudinal member
- 20.1 Unclip clip -7- and move headlight vent line -8- aside.
- 20.2 Unscrew nut -2- and move ground lines -2 and 4- aside.
- 20.3 Release and disconnect cable plug -5- and loosen it from the holder.
- 20.4 Unscrew nut -4-, remove ground line -2- and set it aside.

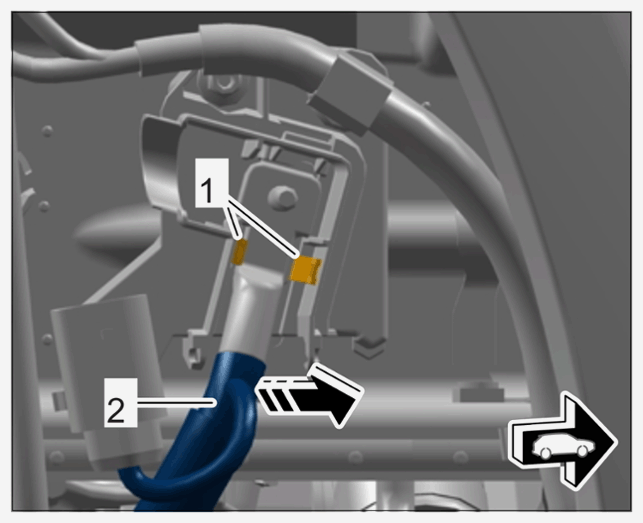

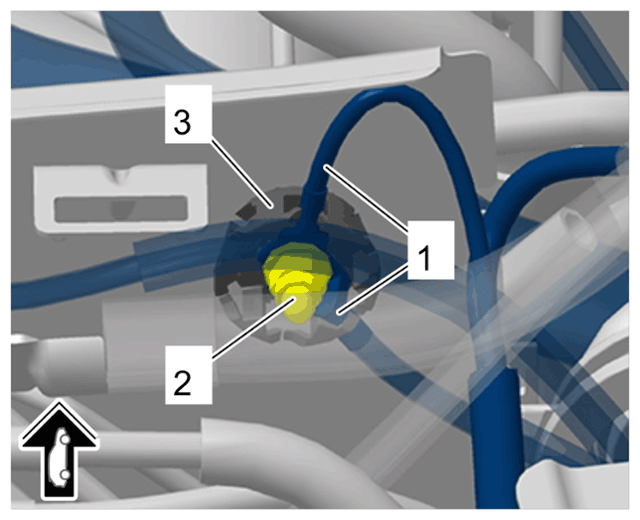

- Press in locking lugs -1-,
pull off ground line -2-
in -direction of arrow-
and guide it down towards the engine.
Ground line

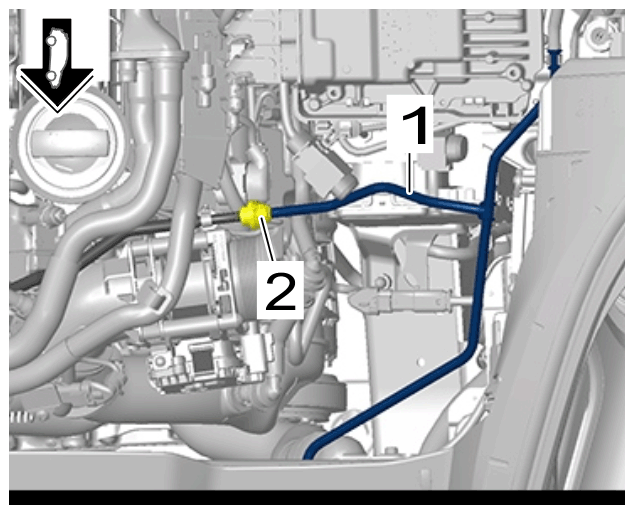

- Loosen tie-wrap -1-
.
Tie-wrap on right wheel housing

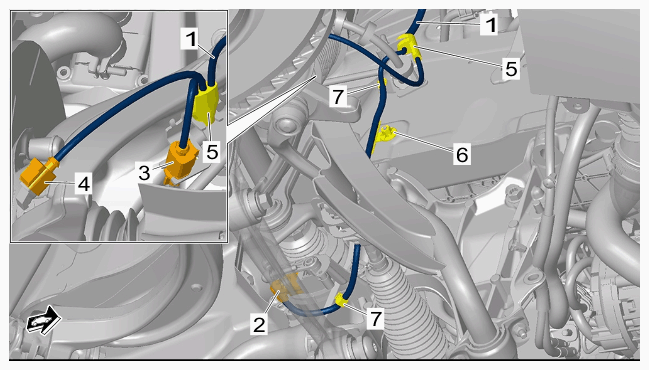

- Disconnect electric wire harness in wheel housing
Electric wire harness in wheel housing
- 23.1 Release and disconnect cable plugs on level sensors -2- .
- 23.2 Release and disconnect cable plug on brake pad wear indicator -3- .
- 23.3 Release and disconnect cable plug on rpm sensor -4- .
- 23.4 Detach rubber holder -5- .
- 23.5 Screw off nut -6- .
- 23.6 Unclip clips -7- .
- 23.7 Move electric wire harness in wheel housing -1- aside.
- Disconnect lines -1 and 2-
from engine mount bracket.
Lines on engine mount bracket

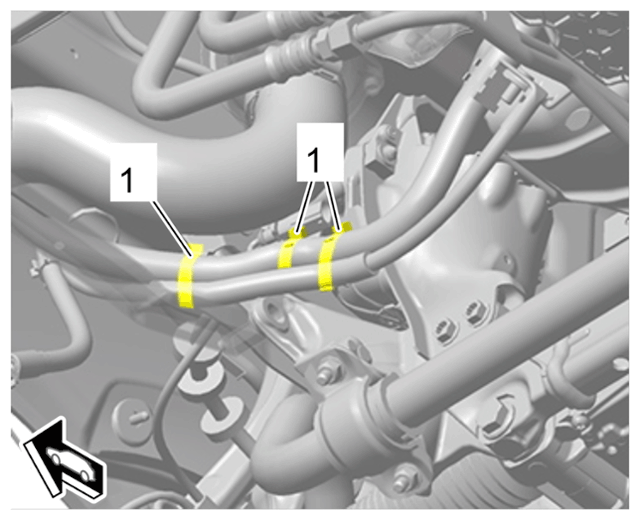

- 24.1 Loosen tie-wrap -3- .
- 24.2 Screw off nut -4- .
- 24.3 Guide ground line -2- towards the right wheel housing.

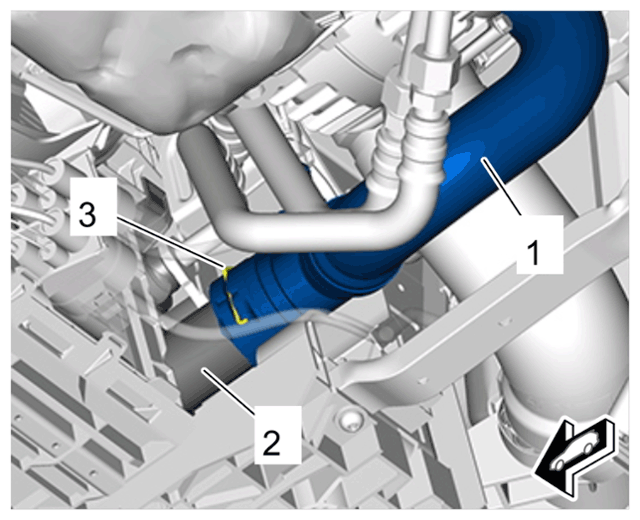

- Disconnect lower coolant hose -1-
from radiator -2-
.
Lower coolant hose
- 25.1 Release safety clip -3- .
- 25.2 Pull off lower coolant hose -1- .
- 25.3 Catch escaping coolant and close off line connections using suitable stoppers.
- Only if the power-steering gear was not already removed:
Release and disconnect cable plug on power-steering gear -1- .
Cable plug for power-steering gear
- Only if the power-steering gear was not already removed:
Disconnect universal joint for steering column -1- from the power-steering gear -2- .

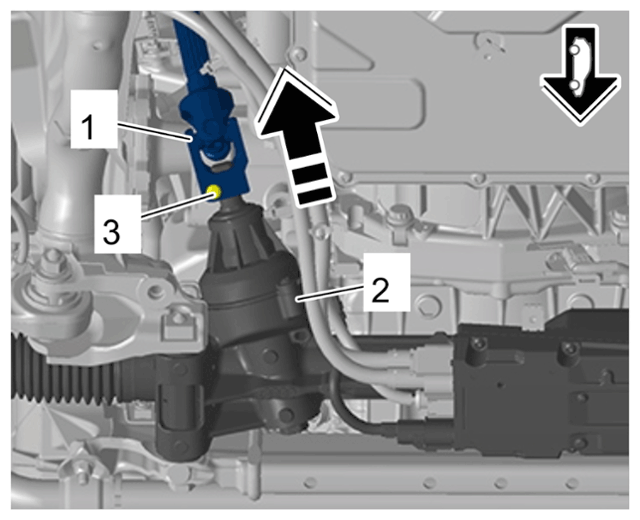

Disconnecting universal joint for steering column at the power-steering gear
- 27.1
Unscrew screw on universal joint for steering column -3-
.
- 27.1.1 Replace screw.
- 27.2 Disconnect universal joint for steering column -1- from the power-steering gear -2- in -direction of arrow- .
- 27.1
Unscrew screw on universal joint for steering column -3-
.
- Disconnect electric wire harness for transmission -1-
.
Electric wire harness for transmission
- 28.1 Release and disconnect cable plug -2 and 3- .
- 28.2 Unclip clips -4- .

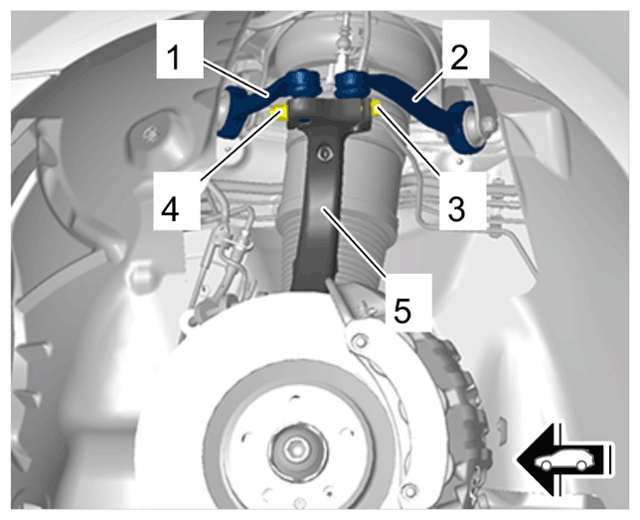

- Loosen upper trailing arm -1 and 2-
from wheel bearing housing -5-
.
Upper trailing arms on wheel bearing housing
- 29.1
Unscrew nut -4-
and counter at the clamping screw on the wheel bearing housing -3-
at the same time.
- 29.1.1 Replace nut and screw.
- 29.2 Pull upper trailing arms -1 and 2- out of the wheel bearing housing -5- .
- 29.3 Secure the wheel bearing housing -5- until the elevating platform is fitted to prevent it from tilting sideways.
- 29.1
Unscrew nut -4-
and counter at the clamping screw on the wheel bearing housing -3-
at the same time.
- Disconnect spring strut forks
Spring strut fork
- 30.1
Unscrew nut on spring strut fork -2-
and counter at the screw -3-
at the same time.
- 30.1.1 Replace nut.
- 30.2
Remove screw -3-
.
- 30.2.1 Replace screw.
- 30.3 > 3424 - Spreader must be inserted into the clamp on the spring strut forks -1- and turned by 90°.
- 30.1
Unscrew nut on spring strut fork -2-
and counter at the screw -3-
at the same time.
- >

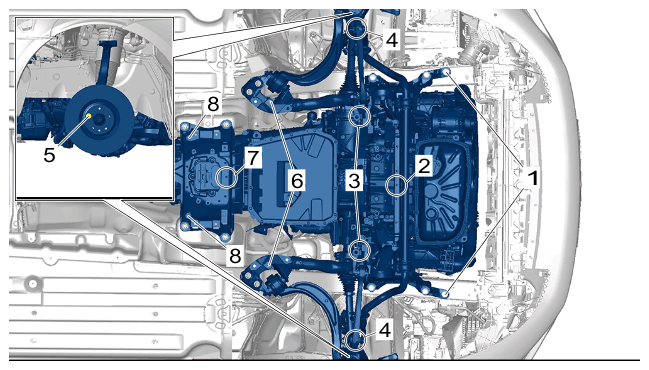

VAS 6832 - Master Gear unit elevating platform
with >
VAS 6832/5 - assembly device - Macan-1 to 8-
must now be fitted.
Mounting points
- 31.1
Secure wheel hub support hand-tight with wheel bolt -5-
.
Information
You will need a second mechanic to help you with this step.
- Remove engine -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Bolts

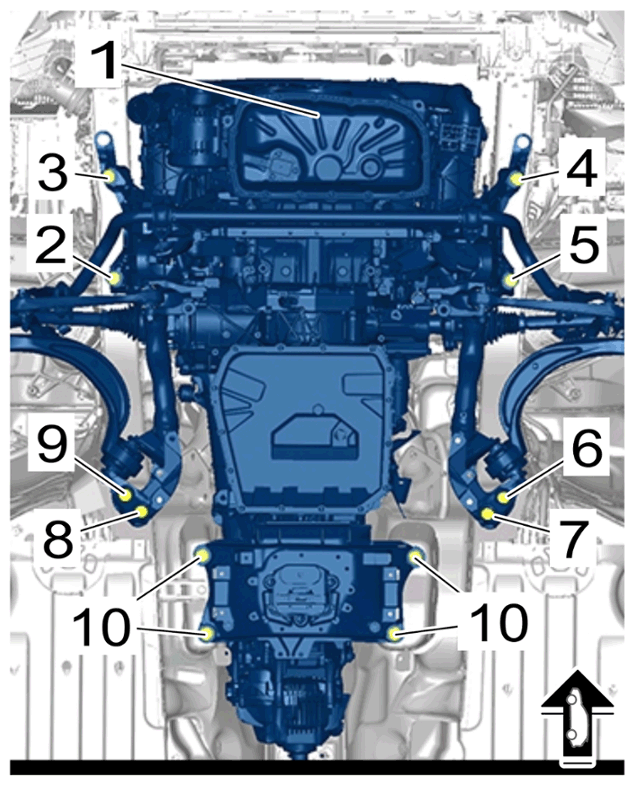

- 32.1 Mark the position of the front-axle carrier and transmission support on the body using a water-resistant felt-tip pen.
- 32.2 Unscrew screws on front-axle carrier -2 to 9- .
- 32.2.1 Replace screws.
- 32.3 Unscrew screws on transmission support -10- .
- 32.4 Carefully lower the engine -1- on > VAS 6832 - Master Gear unit elevating platform . Make sure that no lines or other components are trapped or damaged.
